Prusa SL1: Revolutionizing Resin 3D Printing with High-Resolution MSLA Technology

Josef Prusa, the visionary behind the renowned open-source FDM 3D printers that bear his name, has made a significant leap into a new additive manufacturing domain with the introduction of the Prusa SL1. This groundbreaking machine represents Prusa Research’s ambitious foray into resin-based 3D printing, specifically leveraging stereolithography (SLA) technology. With an impressive team of over 320 dedicated employees, Prusa Research continues its remarkable expansion, diversifying its product line to include advanced resin 3D printing solutions that promise precision and reliability.

The new Prusa SL1 operates on the Masked Stereolithography (MSLA) process, a sophisticated variant of SLA known for its efficiency and detail. A core design philosophy for the SL1 is its meticulously engineered, rigid frame, a critical feature for ensuring maximum stability during the delicate printing process. This enhanced structural integrity directly translates into superior print quality, reduced print failures, and consistent results, making the final impressions more reliable and precise. The Prusa SL1 quickly garnered significant attention upon its announcement, becoming available for preorder from $1599, with initial units slated for delivery in December, marking a new chapter for both the company and the desktop resin 3D printing market.

Prusa has long held a prominent position as one of the most recognized and respected manufacturers in the 3D printing industry. Its flagship FDM kit printer, the Original Prusa i3 MK3, is widely celebrated for its robust design, reliability, and open-source nature, having inspired countless other printer designs and fostering a vibrant community of makers. By extending its expertise into stereolithography, the Czech company aims to bring its signature blend of quality, innovation, and user-centric design to the high-resolution resin printing segment. This strategic move not only expands Prusa’s market footprint but also intensifies competition in a rapidly evolving sector.

Prusa’s entry into resin 3D printing aligns with a broader industry trend, seeing other prominent manufacturers also venturing into this technology. For example, Polish manufacturer Zortrax had recently announced the release of its first resin machine, the Inkspire, just a few days prior to the SL1’s unveiling. This raises a crucial question for the market: can Prusa effectively compete with already well-established players in this niche, such as Formlabs with its highly popular Form 2, or innovative newcomers like the Slash+ from Uniz? Prusa’s strategy appears to hinge on offering a compelling combination of its renowned open-source philosophy, exceptional customer support, and a highly capable machine at a competitive price point, aiming to capture a significant share of the desktop resin 3D printing market.

Deep Dive into the Technical Specifications of the Prusa SL1

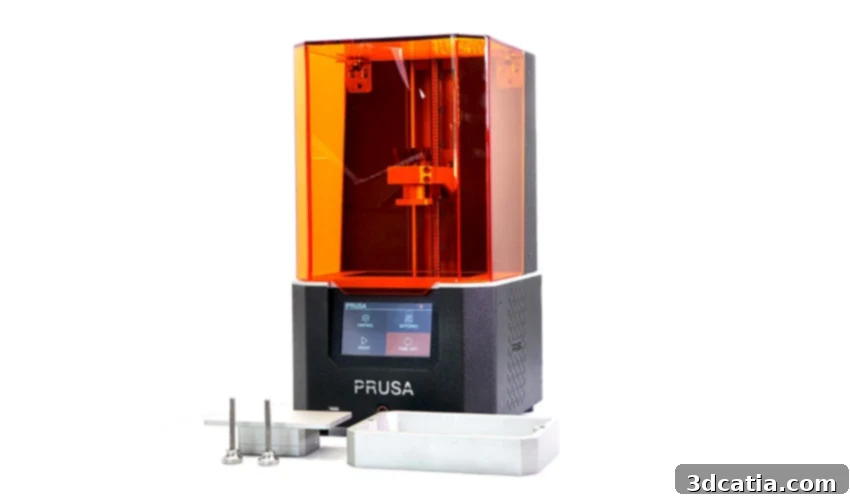

According to Prusa Research, the SL1 3D printer is engineered for precision and reliability, featuring a high-resolution 5.5-inch LCD screen. This screen is fundamental to the MSLA process, acting as a dynamic mask that precisely controls where the UV light cures the resin, enabling the creation of intricate details with exceptional clarity. The printer offers a practical print volume of 120 x 68 x 150 mm, providing ample space for a wide range of applications, from small, highly detailed miniatures to functional prototypes. One of the key advantages of MSLA technology, as demonstrated by the SL1, is its speed; it can cure an individual layer in as little as 6 seconds before the build platform meticulously rises to facilitate the formation of the next layer, significantly reducing overall print times compared to some other resin technologies.

The underlying structure of the Prusa SL1 is built upon a robust and rigid frame. This foundational design choice is paramount for ensuring consistent print quality and superior stability, which are crucial for achieving repeatable, high-precision results in resin 3D printing. A stable frame minimizes vibrations and deflections that could otherwise introduce inaccuracies into the printed object. Furthermore, Prusa has focused on user convenience by incorporating a greatly simplified build plate calibration system. This ease of calibration makes the printer more accessible to both beginners and experienced users, reducing setup time and the potential for common printing errors. Thanks to these precision-engineered components, the SL1 is capable of achieving an incredibly fine layer height, down to an impressive 0.01 mm (10 microns), allowing for exceptionally smooth surface finishes and the reproduction of minute features.

However, it is particularly the ingenious design of its resin tank that distinguishes the Prusa SL1. This tank features a transparent and highly flexible FEP (Fluorinated Ethylene Propylene) film at its base. The flexibility of this film is instrumental in reducing the ‘peel force’ – the suction created when a newly cured layer is separated from the bottom of the tank. By minimizing this force, the FEP film significantly improves print success rates, places less stress on the printed model, and helps prevent delicate features from detaching from the build plate. The tank itself is also designed for effortless removal, which greatly simplifies the process of changing resins and cleaning, enhancing the overall user experience. Directly beneath this advanced resin tank are the crucial LCD screen and the powerful UV light source, working in concert to solidify each layer of the model.

Further bolstering its intelligence and reliability, the Prusa SL1’s resin tank is equipped with an integrated resin level sensor. This innovative sensor actively monitors the amount of resin remaining in the tank, providing real-time feedback and preventing common print failures that occur when the printer runs out of material mid-job. This smart feature ensures greater print success and minimizes material waste, reflecting Prusa’s dedication to robust, user-friendly design. In addition, the printing plate incorporates a motorized tilt function. This sophisticated mechanism gently tilts the build plate after each layer is cured and separated. The primary benefits of this tilt function are twofold: it actively helps to avoid layer variations by ensuring fresh resin flows over the entire print area, and it continuously mixes the resin, preventing pigment settling and maintaining consistent material properties throughout the entire print duration. As Josef Prusa himself emphasized, “This significantly improves the surface finish of the models and reduces the stress on the model that is less likely to come off the base.” This meticulous engineering ensures both aesthetic quality and structural integrity.

Streamlined Workflow and Versatile Applications of the Prusa SL1

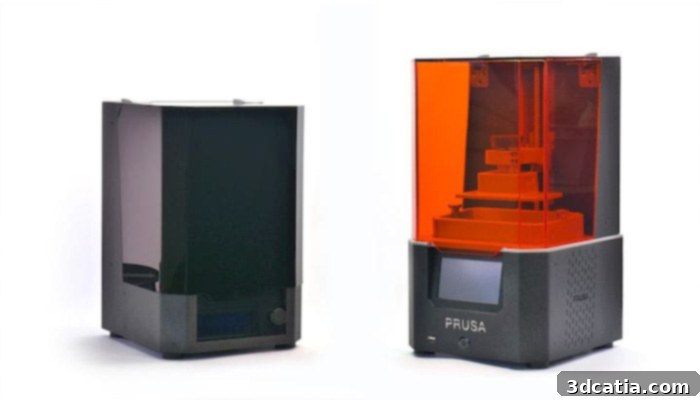

To complement the advanced capabilities of the SL1, Prusa also offers a dedicated post-processing machine designed to integrate seamlessly with the 3D resin printer. This essential accessory is crucial for simplifying and accelerating the often-laborious washing and curing processes for resin-printed parts. Post-processing is a critical step in resin 3D printing to remove uncured resin and fully solidify the model, and Prusa’s integrated solution ensures that users can achieve professional-grade finishes with minimal mess and effort. This holistic approach significantly enhances the overall workflow, making resin 3D printing more accessible and efficient for all users.

Regarding material compatibility, Prusa asserts that the SL1 is designed to be compatible with most commercially available resins on the market. This broad material support is a significant advantage, offering users unparalleled flexibility to choose from a vast array of resins tailored to specific application needs, whether for standard prototyping, dental applications, jewelry casting, or specialized engineering materials. This open-material philosophy, a cornerstone of Prusa’s approach, frees users from proprietary resin restrictions, fostering greater innovation and cost-effectiveness.

The user experience of the Prusa SL1 is further elevated by its advanced connectivity features and intuitive interface. Equipped with Wi-Fi connectivity, the printer can be easily integrated into any networked environment, allowing for convenient remote monitoring and control of print jobs. The built-in touch screen provides a clear and user-friendly interface that expertly guides both novices and experienced users through every stage of the printing process, from selecting models and initiating prints to monitoring progress. This combination of robust functionality and ease of use positions the SL1 as an exceptionally user-friendly machine suitable for a wide array of high-precision applications.

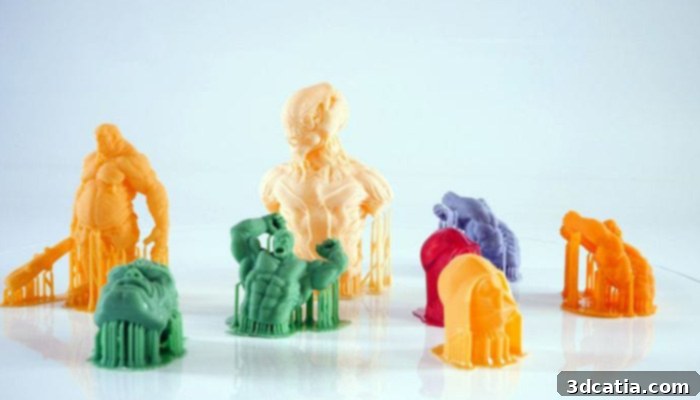

The versatile capabilities of the Prusa SL1 make it an ideal tool across numerous professional and creative fields. Its ability to produce exceptionally detailed and smooth parts makes it perfect for creating intricate prototypes for jewelry designers, where fine details are paramount. In the dental sector, the SL1 excels at producing highly accurate dental models, surgical guides, and custom prosthetics, meeting the rigorous demands of medical precision. Beyond these specialized industries, the printer is also an invaluable asset for artists, architects, and product designers, enabling them to rapidly bring complex and detailed visions to life. Whether for rapid prototyping, functional part creation, or artistic endeavors, the SL1 delivers the precision and reliability required by discerning professionals.

Prusa’s Commitment to Quality, Support, and Affordability

Prusa Research expresses profound confidence in the advanced features and robust capabilities of the Prusa SL1, a confidence built upon their established reputation for delivering high-quality and reliable 3D printing solutions. The manufacturer reassures its users by providing robust security mechanisms, comprehensive and easy-to-understand manuals, and a suite of smart features designed to optimize the printing experience and minimize potential issues. Furthermore, Prusa places a strong emphasis on easy maintenance procedures and ensuring readily accessible spare parts, guaranteeing a long operational lifespan and sustained optimal performance for the SL1. This unwavering commitment to long-term support and user empowerment remains a cornerstone of the Prusa brand, clearly distinguishing them in a highly competitive market.

Reflecting Prusa’s overarching dedication to making advanced 3D printing technology accessible to a broader audience, the Original Prusa SL1 3D Printer was introduced with flexible purchasing options. For those who enjoy the assembly process and seek a more economical entry point, the self-assembly kit was made available starting at an attractive price of $1299, with initial shipments commencing in January 2019. For users preferring an immediate, out-of-the-box experience, the fully assembled version was offered at $1599, with the first orders dispatched in December. This strategic pricing effectively positions the Czech manufacturer within the desktop resin printing segment, presenting a highly competitive and more affordable alternative compared to many other established market players. By offering both a kit option and an assembled unit, Prusa caters to diverse user needs while upholding its core commitment to value, performance, and community engagement.

For more comprehensive details and to explore the full spectrum of capabilities offered by this innovative resin 3D printer, please visit the official Prusa website. You can also gain further insights into the SL1’s design, features, and performance by watching the informative video demonstration below:
