Optomec’s Aerosol Jet 3D Printing: Revolutionizing 5G Millimeter-Wave Performance with Advanced Interconnects
The global telecommunications landscape is undergoing a monumental transformation with the widespread rollout of 5G technology. This next generation of wireless communication promises unprecedented speeds, ultra-low latency, and massive connectivity, fundamentally changing how we interact with the digital world. At the core of this advancement lies the continuous deployment and enhancement of wireless infrastructure. Analysis from Bank of America highlights that these infrastructure cycles traditionally last approximately a decade. With roughly three years already invested in the current cycle, this leaves more than seven years of significant 5G investment opportunities ahead, signaling a sustained period of innovation and development in the telecommunications sector.
A critical component driving 5G’s highest-performance capabilities is the utilization of millimeter-wave (mm-Wave) frequencies. These higher frequency bands are essential for unlocking the vast bandwidth necessary for demanding applications, ranging from high-definition streaming and virtual reality to autonomous vehicles and the expansive Internet of Things (IoT). Consequently, the market for millimeter-wave integrated circuits (ICs) is experiencing explosive growth, projected to expand at an impressive 27% Compound Annual Growth Rate (CAGR) as 5G adoption continues its upward trajectory globally. However, harnessing the full potential of mm-Wave technology presents substantial engineering challenges. Companies have faced significant delays in implementing these advanced circuits due to a pervasive issue: the compromised circuit performance experienced when ICs are produced using traditional manufacturing methods. Conventional interconnect solutions simply cannot cope with the inherent demands of these high frequencies, often leading to undesirable signal degradation and substantial efficiency losses.
Addressing this critical technological bottleneck is Optomec, an American company that has introduced a groundbreaking solution through its proprietary Aerosol Jet technology. Optomec has successfully developed a method to 3D-print interconnect solutions that are capable of achieving up to a remarkable 100% increase in transmitted signal power for each circuit connection operating within the millimeter-wave range. This innovation directly tackles the core performance limitations that have previously hindered widespread mm-Wave adoption and the realization of 5G’s full promise. The development of this cutting-edge 3D-printed method was a direct response to the escalating demand for high-performance 5G components from Optomec’s extensive customer base. This prestigious list currently includes globally recognized entities such as GE, Samsung, Lockheed Martin, and NASA – a clear testament to the technology’s robustness, reliability, and critical importance across diverse, high-tech industries requiring precision electronics.
Existing methods of connecting integrated circuits for 5G applications, such as the widely used gold wires or traditional ribbon bonds, are proving significantly less effective for the stringent requirements of millimeter-wave frequencies. The fundamental problem lies in the physics of high-frequency signal transmission: as the operational frequency increases, the effectiveness and integrity of conventional electrical connections decline sharply. This phenomenon is primarily due to several critical factors including the skin effect, where current flows predominantly on the surface of the conductor rather than through its entire cross-section, thereby increasing effective resistance and signal loss. Additionally, parasitic capacitance and inductance inherent in traditional interconnects introduce impedance mismatches and further attenuate signals at higher frequencies. These issues lead to a substantial reduction in transmitted signal strength, increased noise, and overall device inefficiency, rendering conventional solutions suboptimal for advanced 5G hardware and demanding high-frequency electronic systems.
Optomec’s innovative 3D-printed Interconnect solution directly addresses these critical deficiencies by preserving device performance through the creation of extremely low-loss connections. This is achieved through the ability to precisely print geometries with optimized material properties that effectively minimize signal attenuation, cross-talk, and improve impedance matching – all crucial aspects for maintaining signal integrity and maximizing power transfer at mm-Wave frequencies. Bryan Germann, Optomec Product Manager, emphasizes the tangible impact of this technology, stating, “Our customers are reporting some very impressive performance improvements for mm-Wave interconnects.” He further elaborates on the widespread benefits observed across various sectors: “Customers across many industries using millimeter-wave frequency bands are seeing the benefits of printing interconnects in lieu of standard wire or ribbon bonds. The benefit of shorter, better impedance matched transitions is lower losses for each die-to-die or die-to-board transition. This leads to improvements in overall device efficiency and performance.” This highlights the versatility and broad applicability of Optomec’s solution in diverse high-frequency electronic systems, from telecommunications infrastructure to aerospace and defense applications.

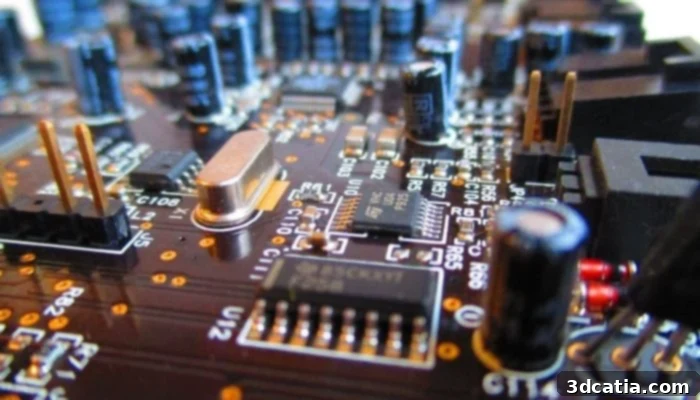

The Aerosol Jet process creates droplets of nanoparticle conductive inks onto circuit boards.
Aerosol Jet Printed Interconnects: A Detailed Look at the Technology
The core of Optomec’s breakthrough lies in its sophisticated Aerosol Jet process, a precision additive manufacturing technique that leverages advanced aerodynamics to deposit electronic inks with unparalleled control onto various substrates. This innovative method begins by introducing a specialized ink, typically composed of nanoparticle conductive materials, into an atomizer. Within the atomizer, the ink is transformed into a dense, highly uniform mist comprising material-laden droplets. These droplets are incredibly fine, typically ranging in diameter from 1 to 5 microns, a size critical for achieving ultra-high-resolution printing and forming precise conductive structures.
Following atomization, this fine aerosol mist is then precisely delivered to a deposition head. Here, a crucial step occurs: the mist is focused by a ‘sheath gas,’ which envelops the aerosol stream as an annular ring. This sheath gas acts like an invisible, aerodynamic nozzle, meticulously confining the aerosol jet and ensuring an extremely tight and controlled beam. This meticulous focusing allows for the accurate and controlled deposition of extremely fine droplets of nanoparticle conductive inks onto circuit boards and other electronic components. What makes this process truly remarkable is its non-contact nature: it can accurately deposit these conductive features from a distance of up to 10 mm, eliminating potential damage to delicate substrates and enabling printing on complex topographies. This capability enables the production of highly intricate conductive features as fine as 10 microns in width, a resolution previously difficult or impossible to achieve with conventional methods for direct writing of conductive traces. The inherent versatility of Aerosol Jet printing extends to its ability to create complex 3D structures and print on non-planar or conformal surfaces, opening up entirely new possibilities for electronic device design and seamless integration.
To ensure that this new integrated circuit solution is fully ready for demanding, full-scale production applications, Optomec has meticulously optimized its new Aerosol Jet HD2 printer specifically for high-volume IC manufacturing environments. The HD2 printer boasts ultra-high printing resolution, which is absolutely critical for the minute features required in modern, compact electronics. Furthermore, it integrates advanced vision-based alignment systems. These features collectively ensure exceptional precision, repeatability, and throughput, making it perfectly suitable for rigorous industrial-scale production lines. Optomec’s commitment extends beyond just hardware; they are dedicated to providing their customers with a comprehensive “360-solution” that is truly production-ready. This includes offering pre-qualified printing recipes and extensive application libraries. These invaluable resources empower manufacturers to rapidly integrate the technology into their existing workflows, streamline development cycles, and achieve consistent, high-quality results without the extensive trial-and-error periods typically associated with adopting novel manufacturing processes. This holistic approach significantly de-risks the adoption of advanced 3D printing for critical 5G components, thereby accelerating time to market for innovative and high-performance electronic devices. For those interested in delving deeper into this transformative Optomec project and its impressive performance metrics, further details can be found HERE.
The profound impact of Optomec’s Aerosol Jet technology extends beyond merely improving signal strength; it represents a paradigm shift in how high-frequency electronics are designed and manufactured. By enabling the creation of superior interconnects, this technology facilitates the development of more efficient, compact, and reliable 5G devices. This includes not only critical infrastructure components, such as base stations and network equipment, but also end-user devices, opening doors for smaller, more powerful smartphones, advanced automotive radar systems, sophisticated aerospace communication platforms, and a myriad of high-performance IoT sensors. The ability to precisely print complex geometries and custom interconnects also offers unparalleled design freedom, allowing engineers to optimize layouts for superior signal integrity in ways previously impossible with traditional two-dimensional manufacturing techniques or conventional wire bonding processes. This flexibility is crucial for minimizing signal reflections, cross-talk, and other impedance discontinuities that frequently plague high-frequency circuits, ultimately ensuring that the valuable data transmitted over 5G networks arrives swiftly, reliably, and without corruption.
Looking ahead, the demand for ever-increasing data rates, expanded bandwidth, and ubiquitous connectivity will only intensify. As 5G networks continue to expand globally and evolve towards future generations like 6G, the technical challenges associated with operating at millimeter-wave and sub-terahertz frequencies will become even more pronounced. Optomec’s pioneering work in 3D-printed electronics positions it at the forefront of this technological evolution, providing foundational solutions that will enable the next wave of wireless innovation. Their unwavering commitment to offering production-ready solutions, supported by robust hardware like the HD2 printer and comprehensive software libraries, ensures that industries can confidently adopt this advanced manufacturing approach. This not only solves immediate performance issues but also actively fosters future advancements in fields requiring extreme precision, miniaturization, and unparalleled performance in electronic packaging and high-frequency circuit design.
