MINGDA MD-400D: Redefining Industrial IDEX 3D Printing with Unprecedented Build Volume

In the rapidly evolving landscape of additive manufacturing, the term IDEX – Independent Dual Extruders – has emerged as a game-changer, particularly within the Fused Deposition Modeling (FDM) segment. This innovative technique allows two print heads to operate completely independently, each equipped with its own nozzle. The core advantage of IDEX technology lies in its ability to significantly enhance printing efficiency and expand design possibilities. Users can print with either identical or different materials simultaneously, leading to much faster FDM printing cycles and the creation of highly complex geometries, including those with intricate overhangs or challenging support structures that can be easily removed post-printing. However, a common limitation among many IDEX solutions on the market has been their restricted print volume, often confining industrial applications to smaller parts or batch sizes. Fortunately, this is no longer a constraint, thanks to MINGDA 3D.

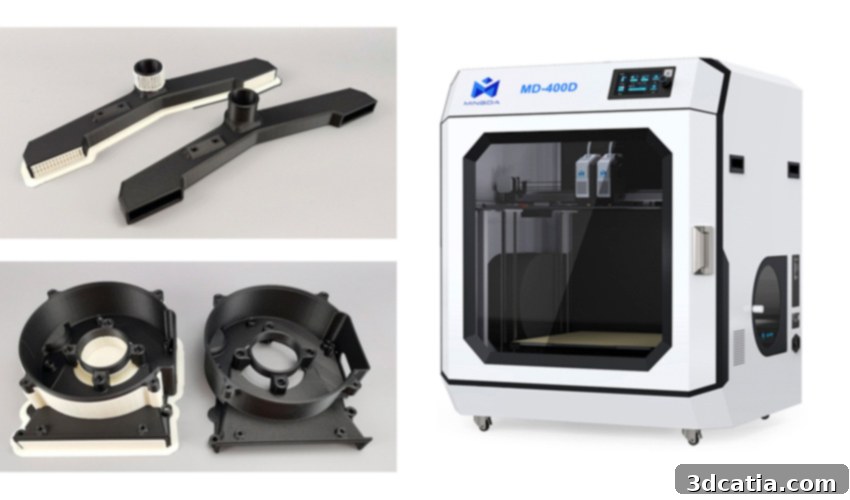

MINGDA 3D has proudly unveiled its latest innovation, the MD-400D 3D printer, a machine that not only integrates a sophisticated IDEX system with diverse functionalities but also shatters previous volume limitations. This printer marks a significant step forward, offering an industrial-grade solution that addresses the growing demand for larger-scale, multi-material, and high-speed additive manufacturing capabilities. Its introduction is poised to set a new benchmark for what is achievable with IDEX technology, blending efficiency with expansive production potential.

While IDEX printers are indeed gaining traction and popularity for their inherent advantages, many existing models typically feature build volumes ranging from a modest 200-300 mm per side. The MINGDA MD-400D, however, distinguishes itself dramatically with an impressive build volume of 400x400x400 mm in its free mode. This generous printing area surpasses many other solutions currently available on the market, positioning the MD-400D as a formidable tool for industrial applications where size matters. This substantial increase in volume allows manufacturers to produce larger components, multiple parts in a single batch, or complex assemblies without the need for segmentation, streamlining production workflows and reducing assembly time.

MINGDA itself is a reputable Chinese company with a long-standing commitment to the 3D printing industry. Since its inception in 2012, MINGDA has focused on developing and providing large-scale industrial 3D printing solutions to a global clientele. The MD-400D is a direct embodiment and continuation of this unwavering goal, reflecting the company’s dedication to innovation and meeting the evolving needs of advanced manufacturing. A product manager at MINGDA 3D articulates the company’s excitement, stating, “We are thrilled to introduce the MD-400D to the 3D printing community. This printer represents our commitment to pushing the boundaries of innovation and providing our customers with the tools they need to bring their ideas to life. With its advanced features and exceptional performance, the MD-400D will set a new standard in IDEX 3D printing technology.” This statement underscores MINGDA’s vision for the MD-400D as a transformative tool that empowers designers and engineers with unparalleled capabilities. We have taken an in-depth look at what users can truly expect from this groundbreaking machine.

Unveiling the Advanced Features of the MINGDA MD-400D 3D Printer

With the MD-400D, MINGDA 3D has meticulously engineered an IDEX 3D printer that genuinely stands as an industrial-grade solution. Its robust construction, large-scale printing capabilities, and high-temperature performance make it suitable for a wide array of demanding applications. According to the manufacturer, these attributes position the MD-400D as the ideal choice for needs encompassing two-color printing, two-material applications, and efficient mass production additive manufacturing. This versatility is facilitated by a suite of cutting-edge characteristics and thoughtful design choices.

Revolutionary IDEX System and Versatile Printing Modes

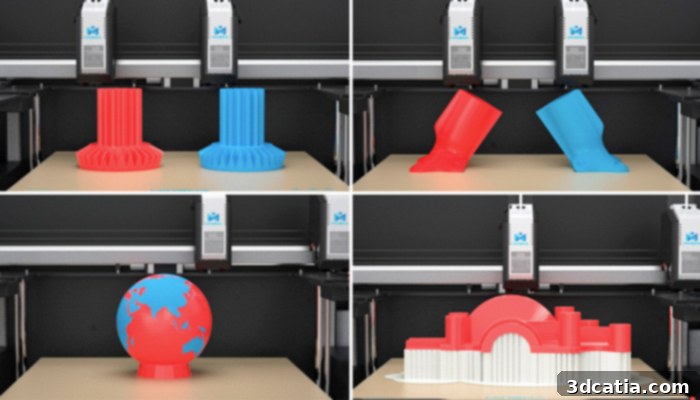

At the heart of the MD-400D’s exceptional functionality is its advanced IDEX system, which unlocks a spectrum of dynamic printing modes. Users gain access to Duplicate Mode, Mirror Mode, Support Mode, and Dual-Color Mode. These capabilities are exclusive to true IDEX printing platforms, offering unparalleled flexibility and efficiency. Each mode is designed to optimize specific aspects of the 3D printing workflow, from accelerating production to enabling complex designs:

• Duplicate Mode: This mode allows users to print two identical parts simultaneously. By moving both independent extruders in unison across the print bed, it effectively doubles production output in the same timeframe it would take a single-extruder machine to print one part. This is invaluable for rapid prototyping, small-batch manufacturing, or producing multiple components for assembly.
• Mirror Mode: Ideal for creating symmetrical pairs, Mirror Mode prints two parts that are exact reflections of each other simultaneously. This is particularly useful in applications like producing left and right components of a product, automotive parts, or custom jigs and fixtures. It eliminates the need for post-processing or reorienting models to achieve symmetry, saving significant design and production time.
• Support Mode: This powerful feature enables simultaneous printing of a primary model material and a dedicated support material. The ability to use soluble support materials like PVA or break-away supports allows for the creation of intricate geometries, complex overhangs, and internal hollow structures that would be impossible or extremely difficult to achieve with single-material printing. This results in superior surface finish, reduces post-processing labor, and expands design freedom considerably.
• Dual-Color Mode: For aesthetic or functional differentiation, Dual-Color Mode allows for the printing of a single model using two distinct colors or materials. This capability is perfect for creating visually striking prototypes, functional parts with color-coded sections, or objects where different material properties are required within the same print, enhancing the utility and appeal of the final product.

These distinct modes provide unparalleled flexibility, allowing users to leverage the full potential of the IDEX system to meet diverse manufacturing demands, improve efficiency, and expand creative horizons.

Industrial-Grade Reliability and Material Versatility

To truly deliver an industrial-grade solution, MINGDA 3D has concentrated on incorporating several other pivotal features beyond just the impressive build size. These enhancements ensure reliability, precision, and broad material compatibility:

• Automatic Bed Leveling: A critical necessity for industrial 3D printing, the MD-400D features advanced auto-leveling functionality. This system automatically adjusts the print bed’s calibration, eliminating the time-consuming and often error-prone manual calibration process. This not only saves valuable operator time and effort but significantly reduces the likelihood of print failures caused by an uneven bed, ensuring consistent print quality across every job.
• High-Performance Extruders with Swappable Hot Ends: The MD-400D’s extruders are meticulously engineered for versatility. Users have the option to easily replace standard hot ends with high-temperature variants capable of reaching an impressive 350℃. This capability dramatically expands the range of compatible materials, allowing for the printing of advanced engineering filaments such as PET-CF (carbon fiber reinforced PET), Nylon-CF (carbon fiber reinforced Nylon), nylon glass fiber, ABS-CF, and other high-performance composites. These materials are crucial for creating functional prototypes, jigs, fixtures, and end-use parts that require superior mechanical strength, stiffness, heat resistance, and chemical inertness. The easy swap mechanism ensures minimal downtime and maximum application flexibility. The common hot end, on the other hand, maintains compatibility with widely used filaments like PLA, ABS, TPU, PETG, and many others, catering to a broad spectrum of prototyping and manufacturing needs.
• Dual-Gear Direct Extruder: The inclusion of a robust dual-gear direct extruder is another significant highlight. Unlike Bowden systems, direct drive extruders position the motor directly above the hot end, resulting in a shorter filament path. This design is inherently more conducive to printing flexible filaments like TPU with greater precision and reliability, minimizing stringing and jamming. The dual-gear mechanism further enhances filament grip, ensuring smoother and more consistent feeding, which is critical for maintaining print quality, especially with challenging or abrasive materials.

Enhanced Printing Environment and User Experience

Beyond its core printing mechanics, the MD-400D is engineered with several features designed to optimize the printing environment, enhance safety, and improve the overall user experience:

• Fully Metal Enclosed Structure: The printer boasts a fully enclosed, all-metal chassis. This robust enclosure serves multiple vital functions. Firstly, it creates a stable thermal environment around the print area, which is crucial when working with engineering filaments like ABS, PC, or Nylon. By maintaining consistent temperatures, the enclosure significantly reduces common printing issues such as warping, delamination, and shrinkage, leading to higher success rates for complex and large parts. Secondly, the enclosure provides an added layer of protection, isolating the printing process from external environmental factors and ensuring operational safety.
• PEI Build Plate: The MD-400D is equipped with a PEI (Polyetherimide) build plate. This surface is renowned in the 3D printing community for its excellent adhesion properties during printing across a wide range of materials. Once the print finishes and the bed cools down, parts detach easily, simplifying post-processing and reducing the risk of damaging prints upon removal. The PEI surface is also highly durable and requires minimal maintenance, contributing to a seamless printing experience.
• Built-in Air Filtration System: For industrial environments and enclosed spaces, air quality is paramount. The MD-400D integrates a built-in air filtration system, which is crucial for safely printing with materials that may emit VOCs (Volatile Organic Compounds) or ultrafine particles. This feature ensures a safer working environment by actively filtering the air during operation, making the MD-400D a responsible choice for professional settings.
• Intuitive Touch Screen Interface: User interaction is made effortless through an intuitive touch screen interface. This responsive display provides easy access to all printer controls, settings, and real-time monitoring of print progress. Its user-friendly design minimizes the learning curve and maximizes operational efficiency, allowing users to manage their prints with confidence and precision.

In summary, the MINGDA MD-400D stands out not only for being one of the largest IDEX offerings on the market but also for its remarkable balance of advanced features, industrial-grade reliability, and cost-effectiveness. It presents a compelling value proposition, offering capabilities often found in significantly more expensive industrial solutions. This makes it an attractive choice for businesses and professionals seeking to elevate their additive manufacturing capabilities without incurring prohibitive costs. Its ability to handle diverse materials, print larger components, and execute multiple operations simultaneously positions the MD-400D as a pivotal tool for modern manufacturing and prototyping challenges.

You can find out more detailed information about the MD-400D and explore other innovative solutions from MINGDA 3D by visiting their official website HERE.
