Shining3D FreeScan UE Pro: Ushering in a New Era of Industrial Blue Laser 3D Metrology

Shining3D, a globally recognized leader in 3D digitizing technologies, continues to push the boundaries of innovation across a diverse range of applications and industries. Renowned not only for its advanced additive manufacturing machines but also for its superior 3D scanning and inspection solutions, Shining3D has recently expanded its acclaimed FreeScan UE product line. The latest addition, the FreeScan UE Pro model, represents a significant leap forward, leveraging cutting-edge blue laser metrology technology. This innovative handheld laser scanner is meticulously engineered to address the most demanding industrial 3D scanning requirements, offering an unparalleled combination of multi-functionality, exceptionally high precision, and robust accuracy. All these advanced capabilities are housed within a remarkably lightweight and user-friendly design, ensuring seamless integration into various professional workflows.

Since its establishment in 2004, Shining3D has demonstrated an unwavering commitment to the advancement and accessibility of 3D digital technologies. Their dedication spans critical sectors such as 3D scanning, digital dentistry, and additive manufacturing. By consistently delivering comprehensive solutions for mass production and providing advanced 3D digital technologies alongside robust customer services, Shining3D has solidified its position as a major global player in the market. The company offers a wide spectrum of 3D machinery worldwide, catering to the evolving needs of various sectors. This strategic expansion comes at a time when the 3D scanning market is experiencing substantial growth. Recent market research indicates a projected value of $11,679.69 million by 2023, exhibiting an estimated Compound Annual Growth Rate (CAGR) of 4.39% during the forecast period of 2018-2023. Key industries rapidly adopting this transformative technology include aerospace and defense, closely followed by the medical and construction sectors, all seeking enhanced precision, efficiency, and digital capabilities. With the introduction of the FreeScan UE Pro, Shining3D aims to further reinforce its dominant market position while simultaneously facilitating the broader implementation of advanced 3D metrology in an even wider array of application sectors, making high-end scanning more accessible and versatile than ever before.

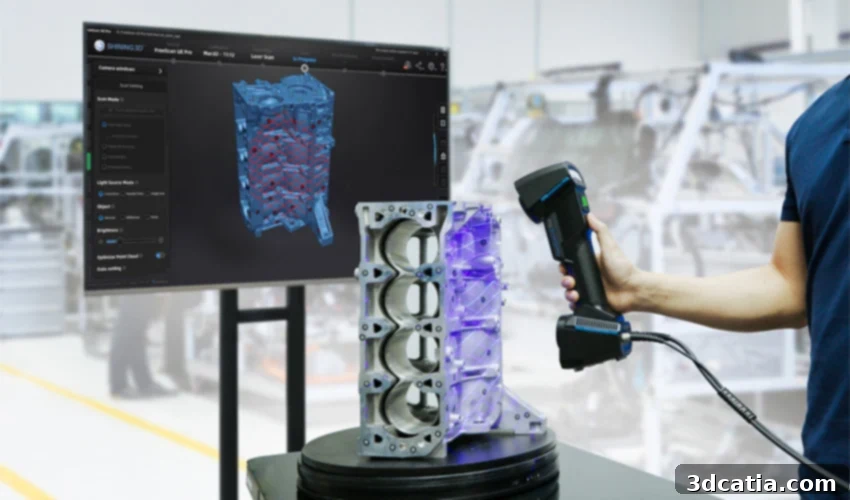

The FreeScan UE Pro is based on advanced blue laser metrology technology, enabling superior precision. (Photo credits: Shining3D)

Unrivaled Features of the FreeScan UE Pro: Elevating Industrial 3D Scanning

The FreeScan UE series is a flagship component of Shining3D’s comprehensive suite of 3D metrology solutions, renowned for its commitment to high-quality data acquisition. This series comprises advanced handheld 3D scanners that consistently deliver exceptional data quality, which directly translates into superior and more accurate final models. The launch of the FreeScan UE Pro marks a pivotal moment, introducing a host of significant updates and innovative features designed to make metrology-grade technology even more accessible and powerful for users across all industries. One of the most groundbreaking aspects of this new scanner is its multi-functional scanning modes, which offer metrology-grade accuracy of up to an astounding 0.02 mm. This level of precision ensures consistent and highly reliable final results, crucial for critical industrial applications such as quality control, reverse engineering, and product development where stringent tolerances are non-negotiable. The FreeScan UE Pro’s versatility is truly impressive; for scanning large-scale objects efficiently, it employs thirteen crossed laser lines, enabling rapid data capture across expansive surfaces. To digitize the most intricate details with unparalleled clarity, it seamlessly transitions to five parallel laser lines. Furthermore, for challenging geometries like deep holes and pocket areas, a single laser line mode ensures comprehensive and accurate data capture, overcoming obstacles that typically challenge less advanced scanners.

The combination of these intelligent scanning modes and a high-resolution camera empowers the FreeScan UE Pro to capture even the minutest details with remarkable accuracy and fidelity. This capability is paramount for applications demanding the highest level of detail. Sunny Wong, Product Manager for Industrial Products at Shining3D, highlights a key advantage: “Photogrammetry plays an important role in the 3D scanning of big objects, providing a guarantee of high accuracy. We fuse the power of laser and built-in photogrammetry in the FreeScan UE Pro to provide a highly efficient all-in-one solution for large-scale 3D inspection and reverse engineering.” This integrated photogrammetry function is a game-changer, as it allows the spatial position of the target frame to be precisely locked even within expansive scanning areas. Critically, this is achieved without the traditional need to apply coded targets, streamlining the scanning process for large objects, reducing preparation time, and enhancing overall efficiency. The elimination of coded targets also minimizes potential user error and simplifies the entire workflow, making large-scale projects more manageable and cost-effective.

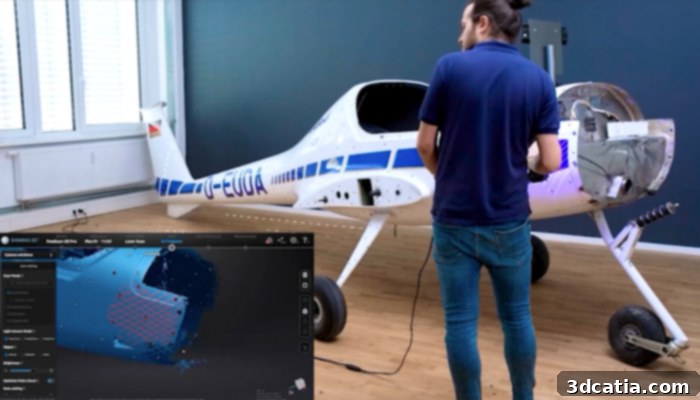

The FreeScan UE Pro features multiple scanning modes, enabling high accuracy and versatility for diverse applications. (Photo credits: Shining3D)

Another significant innovation incorporated into the FreeScan UE Pro is its wide range of adaptations for various materials and surface finishes. This advanced 3D scanner possesses the remarkable ability to scan virtually all types of surfaces, including notoriously challenging ones like the darkest and most highly reflective materials. This capability dramatically enhances the efficiency of the scanning process by substantially reducing or even eliminating the need to apply matting agents, which traditionally add considerable time and cost to projects. On the technical performance front, the FreeScan UE Pro achieves an impressive scanning speed of 1,850,000 points per second, allowing for rapid data acquisition across large areas. It boasts a generous single scanning range of 600 mm x 550 mm and an adaptable depth of between 170 mm and 680 mm, providing extensive coverage for diverse object sizes. Inheriting the lightweight and ergonomic design philosophy of the entire UE series, this 3D scanner maintains compact dimensions of 298 mm x 103.5 mm x 74.5 mm and weighs a mere 840 grams. This thoughtful design ensures exceptional user-friendliness, significantly reduces operator fatigue during extended scanning sessions, and shortens the user learning curve, making advanced metrology accessible to a broader user base. In terms of software, the FreeScan UE Pro offers seamless coupling and integration with industry-standard inspection and design programs. This means that highly accurate scanned data can be effortlessly imported into common 3D software suites such as Geomagic Control X (for inspection), Geomagic Design X (for reverse engineering), and Verisurf Inspect with just a single click. This streamlined integration provides a dramatically more efficient workflow, minimizing bottlenecks and maximizing productivity from data acquisition to final analysis or design.

This professional-grade 3D metrology solution is meticulously engineered with speed, accuracy, and intricate detail capture as its core tenets. This powerful combination allows the FreeScan UE Pro to be flexibly applied to scanning scenarios of vastly different sizes and complexities. Its capabilities extend to performing metrology-grade inspections, facilitating precise reverse engineering, aiding in advanced additive manufacturing processes, and supporting a multitude of other industrial applications. With the introduction of this cutting-edge scanner, Shining3D is poised to significantly improve efficiency across all workflows that rely on 3D solutions. The FreeScan UE Pro empowers users to undertake the digitization of even the most powerful and complex structures with unprecedented ease and accuracy. Ultimately, this innovation makes advanced 3D metrology technology more accessible and impactful for a wider range of industries, driving digital transformation and enabling higher standards of quality and productivity across the globe. You can find more comprehensive information about this revolutionary 3D scanner and its capabilities on the company’s official website by clicking HERE.
