Advancing Medical 3D Printing: The Critical Role of ViscoTec’s Medical-Grade vipro-HEAD Printheads for Patient-Specific Solutions

In the rapidly evolving landscape of medical additive manufacturing (AM), significant attention is rightly given to the development of advanced biocompatible materials and the stringent regulatory approvals required for clinical use. However, a less frequently highlighted yet equally critical component underpins the success of these innovations: the printhead. As the primary interface between the printing system and the material, the printhead demands exceptional precision, reliability, and, crucially, sterilizability. These qualities are paramount for producing safe, effective, and patient-specific medical solutions that meet the rigorous demands of healthcare applications.

The printhead’s ability to deposit materials with micron-level accuracy is essential for replicating complex biological geometries, whether for intricate tissue scaffolds, personalized implants, or precise drug delivery systems. Furthermore, its construction from medical-grade materials and the capacity for sterilization are non-negotiable requirements to prevent cross-contamination and ensure patient safety. Without these foundational elements, even the most innovative biocompatible materials cannot be reliably translated into clinical practice. As personalized medicine continues to define modern healthcare, the demand for such specialized medical-grade additive manufacturing components is escalating.

Addressing this growing need, ViscoTec Pumpen- u. Dosiertechnik GmbH, a recognized leader in fluid technology, has developed a groundbreaking medical-grade series of 3D print toolheads. Built upon their well-established and proven vipro-HEAD models, these new toolheads are meticulously engineered for the medical technology market. A core feature is their product-contact surfaces, which are crafted from high-quality stainless steel or FDA-certified elastomers and plastics. This selection of materials ensures robust performance and compliance with strict medical standards. Furthermore, an autoclavable version is available, capable of withstand sterilization at temperatures up to 121°C. This critical feature allows for thorough cleaning and sterilization, effectively eliminating the risk of cross-contamination and ensuring aseptic conditions, which is indispensable in clinical settings. Designed for versatility, these printheads can be attached to almost any 3D printer, facilitating seamless integration into existing clinical workflows and research environments.

Unlocking Precision and Purity: What the vipro-HEAD Medical Series Offers

ViscoTec’s long-standing expertise in fluid technology systems spans the entire spectrum from precise material extraction and sophisticated preparation to the highly accurate dosing of both medium and high viscosity media. This extensive experience is directly and seamlessly translated into their additive manufacturing solutions, where the accurate deposition of materials is not merely important but absolutely vital for functional and safe medical devices. Building on the foundational success and proven reliability of the established vipro-HEAD series, the company now proudly offers advanced medical-grade versions of their key printheads, specifically adapted for the demanding healthcare sector.

The vipro-HEAD medical series includes several specialized models, each designed to meet specific application requirements in medical 3D printing:

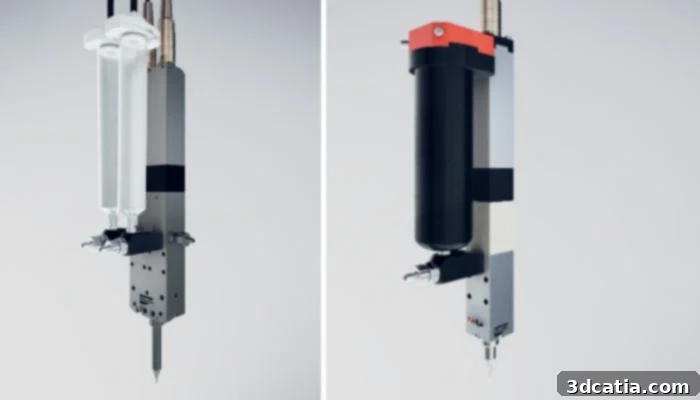

• vipro-HEAD 3 and vipro-HEAD 5: These models are engineered for single-component dispensing, offering exceptional precision for a wide array of medical-grade materials. They are workhorses for general medical prototyping and small-batch production where meticulous control over material deposition is critical.
• vipro-HEAD 5/5 for two-component applications: This specialized printhead is crucial for processes requiring the precise mixing and deposition of two distinct materials simultaneously. This is particularly valuable for creating complex structures from multi-material formulations, such as those found in advanced tissue engineering or specialized implant designs where gradient properties are desired.
• vipro-HEAD 5 with heating function: Available in a standard version capable of reaching up to 70 °C and a high-temperature version that can operate up to 110 °C. The heating function is indispensable for printing materials that require elevated temperatures to achieve optimal flow properties or to initiate cross-linking reactions during the deposition process, allowing for the processing of a broader range of viscous and temperature-sensitive medical materials like certain biopolymers or ceramics.

These sophisticated toolheads are engineered to deliver remarkably high-resolution prints, achieving impressive line widths between 100–150 µm. This level of detail is critical for recreating the intricate microstructures often found in biological tissues and for fabricating medical devices with precise internal architectures. For single-component applications, the printheads boast a maximum volume flow of 6 ml/min, enabling efficient yet controlled material extrusion. For two-component applications, this flow rate doubles to 12 ml/min, supporting both the precision demanded by medical applications and the efficiency necessary for practical production. This combination of fine resolution and flexible volume flow ensures that ViscoTec’s vipro-HEAD series is capable of handling a diverse range of medical additive manufacturing tasks, from delicate cellular scaffolds to more robust prosthetic components, bridging the gap between intricate design and scalable production.

Expanding the Horizons of Personalized Healthcare with ViscoTec

With these advanced capabilities now firmly in place, the vipro-HEAD medical series significantly expands the possibilities for creating a wide array of innovative, patient-specific solutions in healthcare. The versatility of these printheads allows them to process crucial medical materials, including hydrogels, which are vital for tissue engineering due to their excellent biocompatibility and resemblance to natural extracellular matrices; silicones, known for their flexibility and inertness, making them ideal for flexible implants and anatomical models; polycaprolactones, a biocompatible and biodegradable polymer frequently used for absorbable implants; and specialized ceramics, which offer high strength and wear resistance for load-bearing implants. This broad material compatibility opens up new avenues for highly specialized applications.

These applications include the creation of truly patient-specific implants, meticulously designed to perfectly match an individual’s unique anatomy, significantly enhancing surgical outcomes and recovery. Beyond implants, the series supports the rapid production of functional prototypes for medical devices, accelerating research and development cycles. Furthermore, it enables innovative therapy solutions, such as individualized drug delivery systems, even when only a single item is required (a “batch size of one”). This empowers clinicians and researchers to tailor treatments with unprecedented precision. Typical applications facilitated by the vipro-HEAD medical series encompass:

• (Absorbable) implants, such as customized bone or breast implants, which can degrade safely within the body over time, promoting natural tissue regeneration.
• Flexible implants, including sophisticated silicone vascular structures, designed to mimic natural biological tissues and improve patient comfort and function.
• 3D printed tablets for individualized drug release, allowing for precise control over dosage and release profiles to optimize therapeutic effects for each patient.
• The development of wearables and rapid prototyping for medical devices, accelerating the design and testing phases of new diagnostic and therapeutic tools.

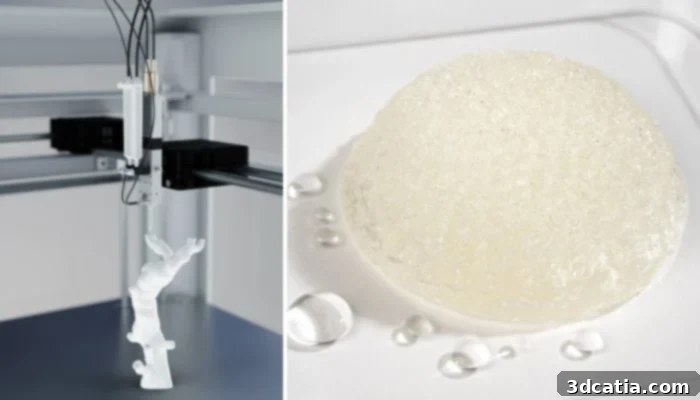

A compelling example of the vipro-HEAD’s success in practical application comes from 3Deus Dynamics, a pioneering company based in Lyon, France. Their team has leveraged ViscoTec’s printheads to produce exceptionally realistic anatomical models, such as detailed aortas. These high-fidelity 3D printed structures are indispensable for advanced surgical training, allowing surgeons to practice complex procedures in a risk-free environment, and for meticulous surgical planning, where precise anatomical understanding is paramount. Additionally, these models are critical for the rigorous testing of new medical devices, providing a lifelike platform for evaluation. By adopting these sophisticated 3D printed models, medical practitioners and researchers can significantly reduce their reliance on animal testing and cadavers, addressing ethical concerns and improving accessibility to realistic training resources.

Another innovative Lyon-based company, Healshape, is transforming reconstructive surgery by utilizing vipro-HEADs to manufacture hydrogel-based, resorbable breast implants. These implants are meticulously customized for each patient, designed not only to restore form but also to actively regenerate natural tissue after implantation through the body’s intrinsic healing mechanisms. The brilliance of this approach lies in the synergistic combination of advanced 3D printing technology, Healshape’s patented biocompatible hydrogel, and ViscoTec’s precise printhead technology. This trifecta enables the creation of individual, natural breast implants that are gradually and safely resorbed by the body within a few months, leaving behind the patient’s own regenerated tissue. This represents a significant leap forward in personalized regenerative medicine, offering a more natural and integrated solution for patients.

Johanna Bruckhuber, Business Development Manager of Components & Devices at ViscoTec, underscored the profound importance of this technological advancement: “With the medical-grade series of our vipro-HEAD printheads, we are taking a monumental next step towards the widespread adoption and advancement of additive manufacturing in medical technology. This innovation empowers our customers to confidently implement highly sophisticated, patient-specific solutions – ranging from life-changing implants to perfectly individualized medicines. In doing so, we are making an indispensable contribution to shaping the medicine of the future, characterized by precision, personalization, and superior patient outcomes.”

At their core, ViscoTec’s medical-grade vipro-HEAD printheads embody precision, reliability, and unparalleled control. These foundational characteristics are not just technical specifications; they are the pillars that transform patient-specific medical solutions from theoretical possibilities into tangible, practical realities. By providing the essential tools for accurate and sterile material deposition, ViscoTec is enabling additive manufacturing to play an increasingly valuable and transformative role in modern healthcare. This technology promises to deliver improved patient care, foster innovative research, and accelerate the development of next-generation medical devices and therapies. To learn more about the advanced capabilities and diverse applications of the vipro-HEAD medical series, click HERE.
