Revolutionizing Industrial Design: Shanghai Electric Leverages PEEK 3D Printing for High-Performance Binocular Camera Brackets

The landscape of industrial manufacturing is undergoing a profound transformation, driven by an escalating demand for high-performance plastics in additive manufacturing. Industries globally are rapidly adopting 3D technologies and pioneering advancements in materials science to fabricate parts boasting superior mechanical properties, reduced weight, and enhanced durability. A prime example of this innovative shift is Shanghai Electric, a formidable global leader renowned for its industrial quality system solutions, with a strategic focus on integrating energy, manufacturing, and digital intelligence. Facing a critical need for an exceptionally stable and precise binocular camera mounting bracket, Shanghai Electric turned to a cutting-edge high-performance material 3D printing solution developed through the collaborative expertise of Victrex and IEMAI. This strategic implementation underscores a broader industrial movement towards manufacturing lighter components that nevertheless deliver unparalleled performance attributes.

The global embrace of advanced plastics is expanding at an unprecedented rate, with the additive manufacturing sector emerging as a significant growth engine. This trend is not merely anecdotal; a comprehensive study published by Markets and Markets projects that the market for high-performance polymers in 3D printing is anticipated to reach a substantial value of $362 million by 2028, exhibiting a robust compound annual growth rate (CAGR) of 24%. This burgeoning demand is primarily fueled by the inherent limitations of conventional, low-cost plastics such as ABS and PLA, which often fail to provide the requisite strength, thermal stability, or chemical resistance for end-use parts in the most rigorous industrial applications. In stark contrast, high-performance 3D printing polymers empower manufacturers to engineer components with exceptional strength-to-weight ratios, remarkable durability, and superior resistance to harsh operating environments. These critical benefits were instrumental in the successful manufacturing of Shanghai Electric’s specialized mounting bracket, a feat made possible by the advanced materials supplied by Victrex and the sophisticated printing technology from IEMAI.

The Critical Role of PEEK 3D Printing for Binocular Camera Systems

Binocular cameras are vital for providing sophisticated stereo vision, achieving 3D reconstruction and depth perception by meticulously calculating the disparity between images captured by two separate cameras. This depth information is incredibly valuable across numerous applications, from advanced robotics and autonomous vehicles to industrial inspection and virtual reality. However, the integrity and reliability of these systems hinge entirely on the unwavering accuracy and stability of the positional calibration between the two cameras. Any slight misalignment or instability in the mounting bracket can profoundly compromise the precision of the 3D reconstruction and depth data. Consequently, the demands placed upon the stability and conformal accuracy of the binocular camera mounting bracket are extraordinarily high. The overall performance of the materials chosen for such a critical bracket is paramount, particularly as these components are often subjected to extreme operational conditions, including significant temperature fluctuations, varying humidity levels, and external mechanical forces. In this challenging context, leveraging the capabilities of high-performance materials through 3D printing emerged as the most optimal and indispensable solution.

Unpacking the Power of PEEK: The “Golden Plastic” for Demanding Applications

Polyetheretherketone, universally known as PEEK, has consistently proven itself as an exceptionally interesting and versatile plastic material option, finding utility across a vast multitude of high-demand applications. This semi-crystalline thermoplastic polymer possesses an extraordinary combination of properties that make it stand out among engineering plastics. Despite being merely one-third the density of common industrial metals like aluminum, PEEK is remarkably eight times stronger, offering an unparalleled strength-to-weight ratio. This makes the so-called “golden plastic” an ideal solution for creating components that require both significant weight reduction and uncompromised structural integrity. Beyond its impressive mechanical strength, PEEK exhibits outstanding resistance to high temperatures, aggressive chemicals, wear, and fatigue. Its biocompatibility also makes it suitable for medical implants, while its low flammability and smoke emission are crucial in aerospace applications. For Shanghai Electric’s binocular camera bracket, PEEK’s ability to maintain dimensional stability and mechanical performance under diverse and extreme environmental stresses was absolutely paramount, making it the material of choice for achieving the required precision and long-term reliability.

A Strategic Partnership: Victrex and IEMAI Empower Shanghai Electric

For Shanghai Electric, the challenge of manufacturing the binocular camera holder was particularly complex due to the unique and highly demanding usage scenarios it would face. These scenarios imposed stringent requirements on the material’s performance, necessitating not only exceptional strength and lightness but also unwavering stability under various stressors. The integration of this advanced 3D printing technology and high-performance material was realized through a synergistic collaboration between two industry titans: VICTREX and IEMAI. VICTREX stands as a globally recognized leader in the innovation and supply of high-performance PEEK and PAEK polymer solutions, possessing deep expertise in material science and formulation. Complementing this, IEMAI is a dynamic Chinese high-tech company dedicated to the research, development, and production of cutting-edge 3D printing technologies and equipment. This strategic partnership brought together Victrex’s unparalleled material expertise with IEMAI’s advanced additive manufacturing capabilities, providing Shanghai Electric with a complete and optimized solution tailored to their specific needs.

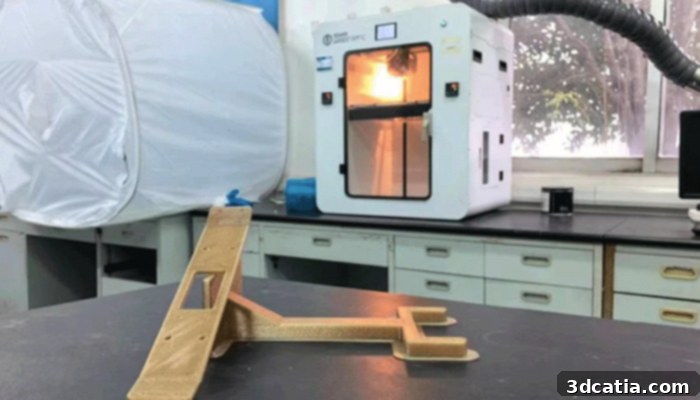

The fruits of this cooperation allowed Shanghai Electric to leverage the cutting-edge additive manufacturing material VICTREX AM™ 200, specifically engineered and optimized for 3D printing processes, in conjunction with IEMAI’s state-of-the-art MAGIC-HT-L high-performance, high-temperature 3D printer. The MAGIC-HT-L operates on FFF (Fused Filament Fabrication) technology, renowned for its versatility and reliability, and boasts a substantial maximum manufacturing volume of 310 × 310 × 480 mm, accommodating a wide range of part sizes. Its most impressive feature is its ability to achieve an extrusion printing temperature of up to 450°C, a critical capability that enables it to process a broad spectrum of high-performance polymers, including PEEK, PEKK, PEI, as well as more standard engineering-grade plastics. Furthermore, the IEMAI MAGIC-HT-L 3D printer incorporates a thoughtfully designed modular mechanism within its extruder assembly. This innovative feature significantly simplifies maintenance procedures and offers the crucial flexibility to support printing with water-soluble support materials, which greatly enhances the complexity and geometric freedom of printed parts while simplifying post-processing.

Achieving Superior Performance: Key Benefits of Advanced PEEK 3D Printing

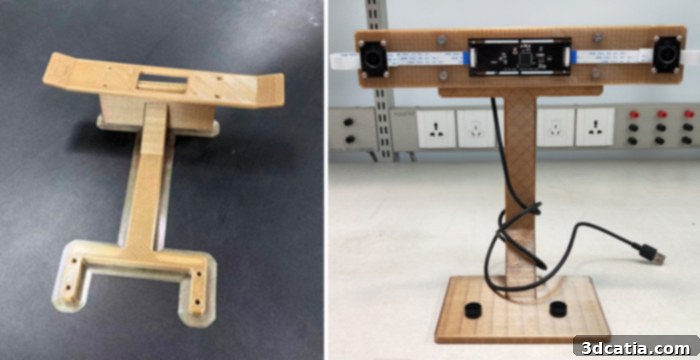

The implementation of this advanced 3D printing solution yielded several transformative benefits for Shanghai Electric. The final 3D printed parts exhibited a significantly more uniform crystallinity, which is crucial for consistent material properties throughout the component. This uniformity translates directly into higher dimensional stability, ensuring that the precise geometry of the binocular camera mounting bracket is maintained even under fluctuating operational conditions. Moreover, a critical advantage observed was the remarkably improved Z-axis tensile strength. Compared to conventional PEEK materials, the Z-axis yield of the VICTREX AM™ 200 printed parts reached an impressive 60% of the XY axis strength. This notable achievement ensures that the mechanical properties are consistent and robust across all directions, eliminating weak points that could compromise the bracket’s performance. Such isotropic properties are indispensable for components subject to multi-directional stresses and vibrations, as is often the case with high-precision optical equipment. Additionally, the inherent excellent temperature and chemical resistance properties of the PEEK material provide an effective guarantee that the part will perform reliably and maintain its structural integrity under the most extreme and demanding environmental conditions, from severe heat or cold to exposure to various industrial chemicals.

Advancing the Technology: IEMAI3D’s Latest Innovations

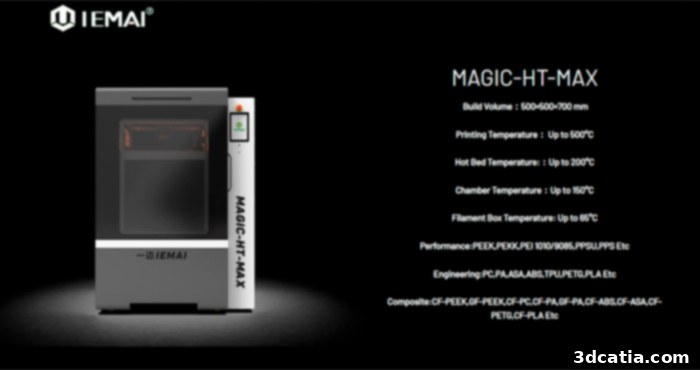

Further demonstrating its commitment to pushing the boundaries of high-performance 3D printing, IEMAI3D has recently introduced significant enhancements to its system for large format high-temperature 3D printers, specifically the MAGIC-HT-MAX. These updates are designed to provide even greater precision and control, particularly in maintaining optimal temperature accuracy, which is paramount when working with sensitive, high-performance polymers like PEEK. The upgraded MAGIC-HT-MAX features optimized electric lifting dual print heads, enhancing print quality and flexibility. Furthermore, by being fully network-connected, the system supports cloud-based Over-The-Air (OTA) updates, real-time monitoring, and remote control capabilities. This sophisticated integration allows users to efficiently manage multiple printers in bulk, optimize print farm operations, and ensure consistent output quality, representing a significant leap forward in industrial additive manufacturing capabilities.

Paving the Way for Future Industrial Solutions

Ultimately, for Shanghai Electric, the adoption of these advanced high-performance 3D printing systems delivered an unparalleled guarantee of precision and reliability for their critical binocular camera mounting bracket. This case study not only highlights the immediate success of a specific industrial application but also underscores the immense potential of high-performance polymer additive manufacturing to address complex engineering challenges across various sectors. The ability to create lightweight, strong, and exceptionally stable components under extreme conditions opens new avenues for innovation in aerospace, automotive, medical, and energy industries. If you are interested in exploring further details about the high-performance 3D printing solutions utilized for this groundbreaking application, or wish to discover how these technologies can benefit your own industrial needs, we encourage you to visit IEMAI’s comprehensive website HERE for more information.
