Metallum3D Unlocks Next-Gen Metal 3D Printing with Advanced Microwave Sintering

The landscape of metal additive manufacturing has undergone remarkable transformation in recent years, marked by an explosive growth trajectory. This expansion is largely attributed to the emergence of innovative players dedicated to making metal 3D printing more accessible and efficient for a broader range of industrial and research applications. Many of these innovators have championed indirect metal 3D printing processes, such as those closely related to Metal Injection Molding (MIM) or advanced Binder Jetting technologies. These methods fundamentally rely on the use of fine metallic powders and a binder agent. Once a green part is printed, it undergoes a critical two-stage post-processing sequence: debinding, where the binder is meticulously removed, and subsequent sintering. Sintering is the pivotal step where the metallic particles are heated in a specialized furnace to a temperature just below their melting point, fusing them together to form a dense, robust final component with the desired mechanical and material properties. Both debinding and sintering are exceptionally technical and critical post-processing steps, demanding precise control. Sintering, in particular, requires meticulous temperature management to ensure complete welding of powder particles without introducing deformation or undesirable microstructural changes. Recognizing these significant post-processing challenges, Metallum3D has pioneered a novel microwave sintering system. This groundbreaking process promises to deliver substantial benefits for these indirect metal additive manufacturing techniques, addressing long-standing hurdles in the industry. We recently had the opportunity to speak with Nelson Zambrana, the visionary founder and CEO of Metallum3D, to delve deeper into this exciting development and understand its potential impact.

Exploring Expertise: Nelson Zambrana’s Journey in Additive Manufacturing

“I am an engineer driven by an inherent passion for business and innovation. My professional journey spans over 25 years, during which I’ve accumulated extensive experience across diverse high-tech sectors, including electronics, pharmaceuticals, and cutting-edge medical device industries. Throughout my career, I’ve been instrumental in implementing and optimizing a wide array of advanced manufacturing processes, from traditional CNC machining and precision injection molding to intricate laser machining and, critically, additive manufacturing. Since establishing Metallum3D in 2016, my efforts have been singularly focused on the research, development, and commercialization of advanced microwave sintering technologies, specifically tailored for sinter-based metal additive manufacturing. This specialized focus reflects my commitment to overcoming one of the most significant bottlenecks in the broader adoption of metal 3D printing.”

The Genesis of Innovation: Why Metallum3D Was Founded

“Metallum3D was founded with a clear, ambitious mission: to revolutionize the critical sintering stage in sinter-based metal additive manufacturing through the development of advanced microwave sintering technologies. For over four decades, the performance metrics of conventional sintering processes, which are fundamental to achieving final part density and strength in metal AM, have seen only marginal improvements. These traditional methods are plagued by several inefficiencies that limit the speed and economic viability of metal 3D printing. Specifically, current conventional sintering processes are characterized by painstakingly slow heating rates, often around 5 degrees Celsius per minute. This leads to exceptionally long sintering times, frequently exceeding 24 hours for a single batch. Furthermore, they are inherently energy-intensive and necessitate significant capital investment in high-cost equipment. Our research demonstrated that microwave sintering possesses immense potential to drastically enhance the performance and economics of this vital process. We envisioned achieving dramatically faster heating rates, potentially 5 to 10 times quicker than conventional methods, leading to an impressive reduction in sintering times—up to 80% compared to traditional furnaces. This efficiency gain also translates directly into lower energy consumption and, ultimately, more affordable equipment costs, making metal AM more accessible to a wider market.”

“Despite these compelling advantages, the widespread adoption of microwave sintering has historically been hampered by two primary technical hurdles. The first critical issue arises from microwave sintering systems operating in a multi-mode resonant condition. This operational mode often results in highly uneven microwave energy distributions within the furnace cavity, directly leading to non-uniform heat distributions across the part being sintered. This lack of thermal uniformity can cause inconsistent material properties and part deformation, rendering it unsuitable for high-precision applications. The second significant problem is that parts undergoing microwave sintering exhibit volumetric heating. While volumetric heating sounds beneficial, it often results in a ‘reverse heating profile’ where the interior of the part becomes significantly hotter than its exterior. Achieving precise heat uniformity is paramount for successful sintering, as it directly dictates the final microstructure, density, and mechanical integrity of the metal component. These two persistent challenges have, until now, prevented microwave sintering from scaling up to large-scale commercial use in critical manufacturing sectors. Metallum3D is directly confronting these limitations by developing revolutionary, patent-pending microwave sintering technologies specifically engineered to deliver the precise heat uniformity absolutely essential for demanding sinter-based metal additive manufacturing applications. Our innovations promise to finally unlock the full potential of microwave sintering for industrial use.”

Unveiling the Technology: How Metallum3D’s System Operates and Its Versatility

“Current microwave heating technologies predominantly rely on multi-mode resonant principles, a method that has achieved widespread success and familiarity in low-power applications like domestic microwave ovens, primarily due to its inherent robustness and design simplicity. However, when applied to the far more demanding process of industrial sintering, this technology reveals a significant drawback: the uneven distribution of microwave energy. This results in highly non-uniform heating during processing, which is detrimental to the precise requirements of metal sintering. Various conventional methods, such as mechanical mode stirrers and rotating turntables, have been developed to mitigate this unevenness and attempt to improve microwave energy distribution. While these might offer some minor benefits in certain scenarios, they prove to be only marginally effective when adapted for the rigorous, high-temperature demands of microwave sintering processes, failing to achieve the precise and consistent thermal uniformity required for high-quality metal parts.”

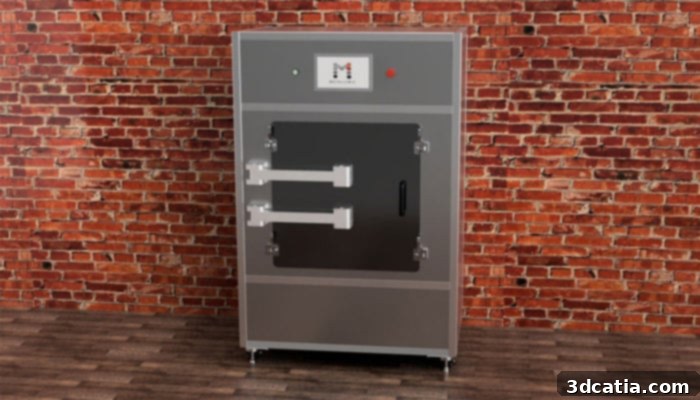

“Metallum3D’s groundbreaking approach tackles these fundamental limitations head-on by developing an entirely new and innovative microwave sintering process. Our system strategically moves away from problematic multi-mode resonant technology. Instead, we utilize a sophisticated combination of non-resonant, cross-polarized slotted waveguides and specialized granular susceptor materials. This proprietary combination is the cornerstone of our innovation. Non-resonant waveguides ensure a much more predictable and controlled distribution of microwave energy, eliminating the ‘hot spots’ and ‘cold spots’ inherent in multi-mode systems. The cross-polarized design further enhances energy dispersion and uniformity, ensuring even heating from multiple directions. Concurrently, the carefully selected granular susceptor materials play a crucial role by absorbing microwave energy and then re-emitting it as highly uniform thermal energy, precisely where and when it’s needed within the part. This ingenious synergy effectively overcomes the inherent limitations of conventional multi-mode resonant technology, guaranteeing exceptionally homogenous heat distributions throughout the entire microwave sintering process. This level of thermal control is unprecedented and vital for producing metal parts with consistent, high-performance mechanical properties.”

“Furthermore, a key design principle for Metallum3D’s microwave sintering furnace is broad compatibility. We are actively designing our system to integrate seamlessly and be fully compatible with a wide array of sinter-based additive manufacturing equipment from leading industry players. This includes renowned platforms from HP, ExOne, Markforged, Desktop Metal, and Xjet. This commitment to cross-platform compatibility ensures that our microwave sintering solution can be easily adopted by a vast number of existing and future metal 3D printing users, significantly broadening its impact and accelerating the overall advancement of the metal AM ecosystem.”

Looking Ahead: The Future Impact of Metallum3D’s Innovations

“At Metallum3D, our core mission is to profoundly improve both the performance and economic viability of sinter-based metal additive manufacturing. We are achieving this by providing a suite of transformative advantages with our advanced microwave sintering technology. Our system delivers:”

• Significantly Faster Heating Rates: Achieving heating rates 5 to 10 times faster than conventional sintering processes. This dramatically cuts down overall processing time, boosting throughput and operational efficiency.
• Superior Uniform Heat Distribution: Our patented technology ensures homogenous heat distribution throughout the entire part, eliminating thermal gradients that can lead to defects and inconsistent material properties. This is crucial for producing high-quality, reliable metal components for demanding applications.
• Drastically Shorter Sintering Times: Users can expect up to an 80% reduction in sintering times compared to traditional methods. This unparalleled speed not only accelerates production but also substantially reduces the energy footprint of the manufacturing process, contributing to sustainability.
• Optimal Microstructure with Enhanced Properties: The shorter, more controlled sintering cycles enabled by our system lead to the formation of smaller, more refined grains within the metal. This optimized microstructure is highly desirable as it typically results in improved mechanical properties, including increased strength, ductility, and fatigue resistance, essential for demanding industrial applications.
• Enhanced Energy Efficiency: By leveraging the direct and efficient heating mechanism of microwaves and significantly reducing processing times, our technology consumes substantially less energy than conventional furnaces. This translates into lower operating costs and a reduced environmental impact, aligning with modern manufacturing goals.
• Lower Equipment Costs: The innovative design and inherent efficiency of our microwave sintering systems contribute to lower overall equipment costs. This makes advanced metal additive manufacturing more accessible and economically attractive for a broader range of businesses, from small and medium-sized enterprises (SMEs) to large industrial players.

“In essence, Metallum3D is not just offering a new furnace; we are providing a comprehensive solution that addresses the most critical bottlenecks in metal additive manufacturing post-processing. Our technology empowers manufacturers to produce higher quality metal parts, faster and more affordably, thereby accelerating the industrial adoption of metal 3D printing across diverse sectors globally.”
