Igniting Innovation: The World’s Tallest 3D Printed Al Davis Memorial Torch at Allegiant Stadium

In a monumental leap for both sports architecture and additive manufacturing, Dimensional Innovations, a leading Kansas-based design, technology, and fabrication firm with a significant national footprint, has achieved a world-first. Utilizing a sophisticated large-scale additive manufacturing (LSAM) solution developed by Thermwood Corporation, the company successfully constructed a breathtaking 93-foot-tall structure. This extraordinary 3D printed marvel, recently unveiled, stands proudly within the confines of the new Allegiant Stadium in Las Vegas, the cutting-edge home of the National Football League (NFL) team, the Las Vegas Raiders. Formerly known as the Oakland Raiders, the team now boasts a stadium feature that is not only visually stunning but also holds the distinguished title of being the tallest additively manufactured structure on the planet.

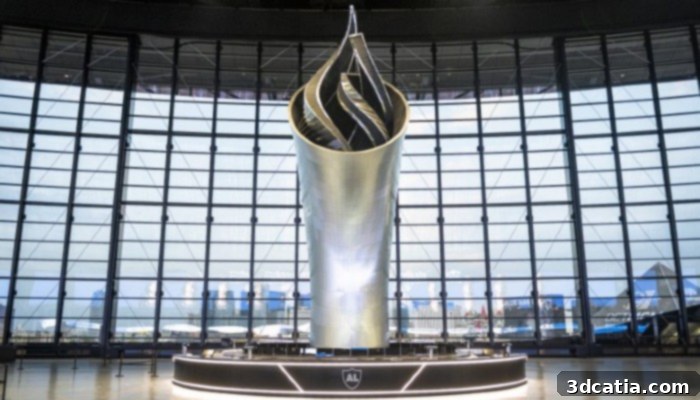

This colossal 3D printed structure is far more than just an architectural highlight; it serves as the revered Al Davis Memorial Torch, a poignant tribute to the team’s legendary manager of 39 years. Al Davis was an iconic figure in American football, celebrated for his enduring tenure as the principal owner and general manager of the Oakland Raiders from 1972 until his passing in 2011. His philosophy of “Just Win, Baby!” and his profound influence shaped the Raiders franchise, leaving an indelible mark on both the team and the sport itself. The nine-stories tall Al Davis Memorial Torch, a testament to his lasting legacy, was meticulously installed at the newly constructed Allegiant Stadium, nestled in the vibrant town of Paradise within the state of Nevada. The entire endeavor, from initial conceptualization and intricate design to advanced manufacturing and final erection of this impressive installation, reportedly demanded an astonishing 50,000 hours of dedicated effort, showcasing the immense complexity and commitment involved.

A Legacy Forged in Innovation: The Al Davis Memorial Torch

The decision to create such a monumental tribute reflects the deep respect and admiration for Al Davis’s contributions. Justin Wood, the Sports Practice Director at Dimensional Innovations, articulated the significance of this project: “Al Davis maintains a significant and lasting influence on the Raiders organization, so we knew his legacy needed to shine bright at their new stadium in Las Vegas. Building the torch was a significant undertaking and one we knew was important to get right. We’re thrilled with the final result and the homage it pays to Mr. Davis.” This statement underscores not only the technical ambition of the project but also the profound emotional connection to the figure it commemorates. The torch is designed to be a permanent, blazing symbol of Al Davis’s spirit, inspiring players and fans alike for generations to come.

The Technological Marvel: Large-Scale Additive Manufacturing in Action

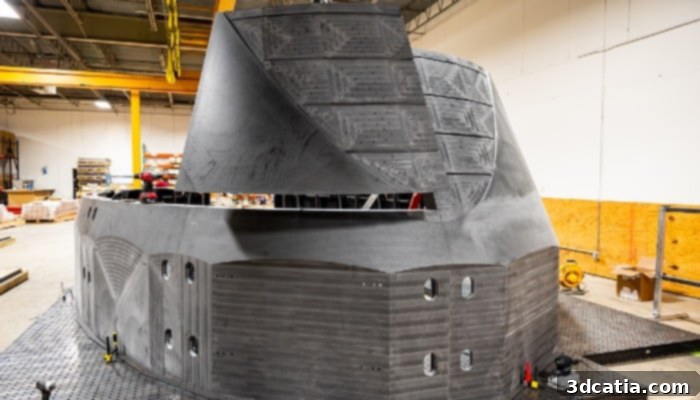

The construction of the Al Davis Memorial Torch pushed the boundaries of what is possible with additive manufacturing. The final 3D printed torch is composed of an astounding 225 individual additively manufactured blocks, each meticulously designed and fabricated to interlock seamlessly. These colossal pieces were produced on a specialized large format LSAM (Large-Scale Additive Manufacturing) machine, an industrial-grade system that Dimensional Innovations acquired for a significant investment of $2.2 million from Thermwood just last year. This acquisition positioned Dimensional Innovations at the forefront of large-scale 3D printing capabilities, making them one of the few firms capable of undertaking projects of this magnitude and complexity.

Choosing the right material was paramount for a structure of this scale and exposure. The team opted for a carbon fiber-reinforced polycarbonate composite. This advanced material was selected for its exceptional strength-to-weight ratio, durability, and resistance to environmental factors, ensuring the torch’s longevity and structural integrity. The sheer volume of material required for this ambitious project was immense: more than 100,000 pounds of raw composite material were consumed to fabricate all the blocks. Each individual block weighed approximately 350 pounds, highlighting the substantial nature of each component that contributes to the overall monumental structure.

Collaborative Spirit and Unwavering Dedication

The successful completion of the Al Davis Memorial Torch stands as a testament to the relentless hard work, innovation, and collaborative spirit of the Dimensional Innovations team. Tucker Trotter, CEO of Dimensional Innovations, expressed profound pride in the achievement: “Our team has worked relentlessly over the past year to develop, print, fabricate, test and install the memorial torch to ensure it conveys the symbolic flame that burns brightest in the Raiders organization. The enormity of the torch, both physically and ideologically, will carry on the memory of Mr. Davis for years to come and we’re proud to have played a part in that.” This sentiment encapsulates the dedication required to bring such a visionary project to fruition, emphasizing the blend of technical expertise and emotional commitment.

Pushing Boundaries in Architecture and Construction

The Al Davis Memorial Torch not only serves as a symbol for the Las Vegas Raiders but also marks a significant milestone for the entire additive manufacturing industry. This project demonstrates the viability and immense potential of large-scale 3D printing for complex architectural and structural applications. Traditionally, fabricating custom structures of this size and intricate detail would involve extensive tooling, significant material waste, and lengthy production times using conventional manufacturing methods. Large-scale 3D printing, however, offers unparalleled design freedom, rapid prototyping capabilities, and the potential for more sustainable construction practices through optimized material use.

The ability to 3D print such a massive structure in sections, using a robust and lightweight composite material, opens new avenues for stadium design, public art installations, and even modular construction. It suggests a future where bespoke architectural elements can be realized with greater efficiency and precision, reducing lead times and allowing for unprecedented levels of customization. The success of the Al Davis Memorial Torch project could inspire further adoption of large-scale additive manufacturing in various sectors, proving that industrial 3D printing is ready for truly monumental challenges. It stands as a beacon of what innovative design, advanced technology, and human ingenuity can achieve when combined.

A Symbol of Enduring Spirit and Future Possibilities

The Al Davis Memorial Torch at Allegiant Stadium is more than just a record-breaking structure; it is a powerful symbol of legacy, innovation, and the enduring spirit of the Las Vegas Raiders. It honors a man whose vision shaped an NFL franchise and simultaneously illuminates the path forward for advanced manufacturing in construction. As visitors gaze upon its towering form, they are not only witnessing a tribute to a football icon but also a testament to the incredible advancements in 3D printing technology.
