INTENSE M1 Mountain Bike Integrates 3D Printing for Unmatched Performance

For downhill mountain bikers, conquering large drops and navigating unpredictable terrain requires lightweight, durable biking equipment. INTENSE’s M1 has long been a leader in the pack, but has recently taken a step forward to further innovate their bicycles. Through a collaboration between TRUMPF and Elementum 3D, the iconic INTENSE M1 downhill bike has received a transformative redesign after the integration of additive manufacturing. Identifying the need to improve the bike’s suspension system, INTENSE aimed to rethink the M1’s design while transcending the boundaries of traditional manufacturing methods.

Central to this redesign is the development of a new 3D printed backbone, or bottom bracket foundation. Traditionally, the original M1 brackets were manufactured using multiple parts. Recognizing the potential for improvement, the team at INTENSE identified that consolidating the design into a single piece made from 6061 Aluminum could significantly enhance the performance and durability of the suspension system. However, the part’s complexity rendered it impossible to use conventional manufacturing techniques, as the single piece incorporates internal ribbing for improved strength.

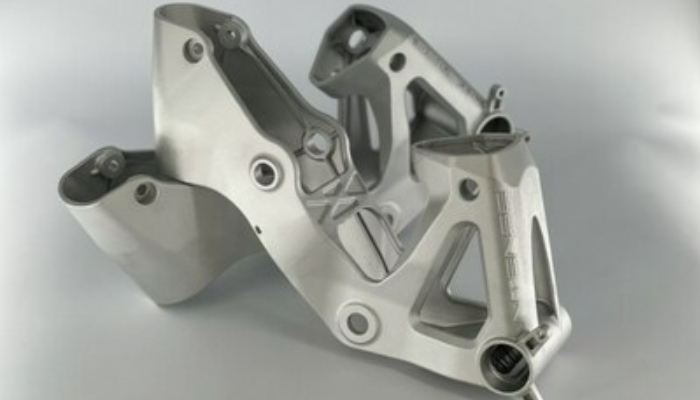

Completed 3D printed INTENSE M1 backbones, made from Elementum 3D’s A6061-RAM2 alloy.

This challenge led INTENSE to explore 3D printing as a solution, resulting in their partnership with TRUMPF to advance this project. TRUMPF’s experience in 3D printing bicycle parts proved pivotal in overcoming the design challenge, as they not only advised INTENSE to utilize 6061 Aluminum in their design, but contacted Elementum 3D for delivery of the material. As prototype testing concluded, a revolutionary 3D printed backbone bottom bracket was produced that not only met, but exceeded the expectations of INTENSE.
