The Top Ceramic 3D Printers on the Market

At the end of 2021, the research firm IDTechEx published a report that estimated that the ceramic additive manufacturing market would be worth $400 million by 2032, seven times more than the forecast for 2022. This is proof that this niche market continues to grow and interest many manufacturers. And if we look at the number of ceramic 3D printers available, we can see that it is also increasing. Remember that ceramics are a material that can be printed using several processes: stereolithography, powder bonding or extrusion. The types of ceramics are very varied. We can indeed find materials such as porcelain or clay, but there are more technical ceramics that will be more popular with manufacturers (alumina, zirconia, tungsten carbide, etc.). But which machines are adapted to technical ceramics? What are the solutions more oriented towards personal use? We have listed a few ceramic 3D printers, dividing them by type of application.

Professional Ceramic Solutions

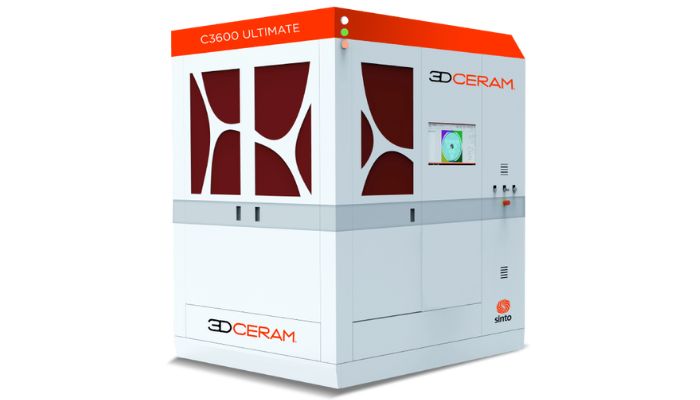

C3600 ULTIMATE From 3DCeram

3DCeram specializes in ceramic additive manufacturing, with particular expertise in stereolithography and the development of technical ceramics. Its C3600 Ultimate 3D printer is suitable for large-scale mass production and the manufacture of large parts for industry. The printer uses stereolithography and is capable of manufacturing objects without the use of support structures. With a weight of around 4,000 kg and dimensions of 2,100 x 1,800 x 2,500 mm, the C3600 Ultimate offers a printing area of 600 x 600 x 300 mm and a layer thickness of between 0.025 and 0.125 mm. Four UV lasers are integrated into the printer, with a beam diameter of around 60 µm.

Photo Credits: 3DCeram

Admaflex 130 From Admatec

This ceramic 3D printer designed for industrial applications is by Admatec, a company based in the Netherlands. Launched in 2018, the Admaflex 130 is a 3D printer that prints ceramics using DLP technology. It features a 96 × 54 × 120 mm build plate, a minimum layer width of 0.03 mm and XY precision of 0.05 mm. This ceramic 3D printer, which weighs a total of 300 kilograms, is perfect for the production of functional and aesthetic parts that need to feature complex geometries, but also fine surfaces. The Dutch company boasts of its printer’s production capabilities, with figures such as the printing of 300 layers of material per hour.
