Ford’s Revolutionary 3D Printed Biometric Locking Wheel Nuts: Redefining Automotive Security with Additive Manufacturing

The automotive industry is constantly evolving, with manufacturers pushing the boundaries of innovation to enhance performance, aesthetics, and, critically, security. Ford Motor Company has consistently been at the forefront of adopting cutting-edge technologies, particularly in the realm of additive manufacturing. Approximately a year ago, Ford made headlines by producing what they proudly declared as the largest automotive 3D printed part ever created: an additively manufactured aluminum intake manifold. This impressive component was custom-fitted onto the Hoonitruck, a bespoke 1977 Ford F-150, renowned for its twin-turbo 3.5-liter V6 EcoBoost engine and owned by Ken Block, the acclaimed star of the popular YouTube series, Gymkhana. This groundbreaking project underscored Ford’s commitment to leveraging 3D printing for high-performance applications and large-scale components. Building on this legacy of innovation, Ford has recently unveiled another ingenious application of 3D printing, this time focusing on a critical aspect of vehicle security: partnering with leading 3D printing manufacturer EOS to engineer unique 3D printed locking wheel nuts designed to combat the persistent problem of wheel and tire theft.

These are no ordinary locking wheel nuts. Ford’s latest invention incorporates a revolutionary biometric signature system, directly linking the security of the wheel to the car owner’s recorded voice. In an era where biometric identification is commonly seen in fingerprint scanners or iris recognition for unlocking devices, Ford has ingeniously adapted this concept to automotive security. The process begins with engineers recording the unique vocal characteristics of the driver. Specialized software then takes these soundwaves and converts them into an intricate, personalized pattern. This highly complex, one-of-a-kind design is subsequently 3D printed onto the locking nut, creating an unparalleled level of personalization and security. The design innovation extends further: the locking nut and its corresponding key are conceptualized and manufactured as a single, unified piece. This integrated design is then 3D printed using robust, acid, and corrosion-resistant stainless steel, ensuring durability and longevity in various environmental conditions. Following the printing process, the nut and key are carefully separated and undergo a minimal amount of finishing, making them ready for immediate use. This sophisticated manufacturing approach ensures that each set is custom-tailored and virtually impossible to replicate by conventional means, thereby offering a significant leap forward in vehicle protection.

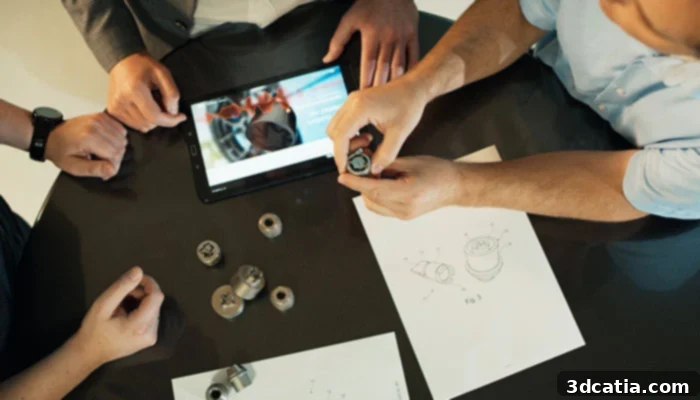

The nut and key are 3D printed as a single piece using stainless steel, showcasing the intricate biometric design. | Credits: Ford Motor Co.

Raphael Koch, Research Engineer for Advanced Materials and Processes at Ford, emphasized the transformative potential of this innovation: “Some alloy wheels can cost thousands to replace, but these unique rim nuts will stop thieves in their tracks. Making wheels more secure and offering more product personalization are further proof that 3D printing is a game-changer for car production.” Koch’s statement highlights not only the immediate benefit of enhanced security but also the broader implications for vehicle customization and the overall impact of additive manufacturing on the automotive sector. The financial burden of replacing stolen alloy wheels can be substantial for vehicle owners, making advanced security measures a highly valuable proposition. This development positions Ford as a leader in applying cutting-edge technology to address real-world consumer challenges, while simultaneously showcasing the versatile capabilities of 3D printing beyond mere prototyping.

The increasing sophistication of thieves has led to a rise in alloy wheel thefts, largely due to the widespread availability and accessibility of locking wheel nut removal tools. These readily available tools often render conventional locking nuts ineffective, making expensive alloy wheels an easy target for criminals. Ford’s new biometric locking wheel nut system aims to directly counter this trend. By designing a completely unique pattern for each driver, the new nuts ensure that standard removal tools are utterly useless. This inherent uniqueness, combined with the complex internal geometry created through additive manufacturing, makes it incredibly challenging for even specialized tools to bypass the security mechanism. Furthermore, Ford has implemented an additional layer of security to prevent thieves from attempting to create a wax imprint or any other type of replication of the pattern. The components feature strategically unevenly spaced ribs inside the nut, along with subtly widening indentations. These intricate internal structures are exceptionally difficult to replicate accurately, even with advanced impression techniques, thereby significantly enhancing the anti-theft capabilities and providing peace of mind to vehicle owners.

A detailed view of the 3D printed locking wheel nuts, highlighting the complex internal structures designed for enhanced security. | Credits: Ford Motor Co.

To bring this innovative concept to fruition, Ford collaborated closely with EOS, a global leader in additive manufacturing technologies. The production of these intricate wheel nuts utilizes EOS’s M 290 3D printer, which operates on the principle of Direct Metal Laser Sintering (DMLS). DMLS is an advanced metal 3D printing process that uses a high-powered laser to selectively melt and fuse metallic powders layer by layer, creating highly dense and complex metal parts directly from a digital design. This technology is crucial for achieving the minute details and internal geometries required for Ford’s biometric nuts. A significant advantage of using DMLS is the remarkable reduction in manufacturing lead time. These highly customized 3D printed components can be produced in as little as five days, a drastic improvement compared to the traditional manufacturing turnaround which could often extend to eight weeks or more for bespoke parts. This speed not only accelerates innovation but also makes mass customization a viable reality. Additive manufacturing truly offers an unprecedented level of customization for automotive parts, increasing safety and personalization at a remarkably reasonable cost. Implementing such a sophisticated and personalized security system using conventional manufacturing methods would be prohibitively expensive, if not outright impossible, due to the complexity and uniqueness of each part. This illustrates how 3D printing facilitates solutions that were previously unattainable, opening new avenues for product development and security enhancements in the automotive industry.

The concept of leveraging additive manufacturing for enhanced security features is gaining traction across various industries. This ingenious approach by Ford bears a striking resemblance to the innovative Stealth Key, manufactured by UrbanAlps. Stealth Keys are notable for their unique 3D printed internal structures, which make them virtually impossible to copy using traditional key duplication methods, thereby offering a superior level of physical security for homes and businesses. Both Ford’s biometric wheel nuts and the Stealth Keys exemplify how 3D printing allows for the creation of internal complexities that are invisible from the outside, yet provide robust protection against tampering and unauthorized replication. This raises a pertinent question for the future: Will additive manufacturing become the standard norm for producing a wide array of more secure components, not just in the automotive sector, but across all industries where security is paramount? The potential for bespoke, anti-counterfeit, and tamper-proof parts is immense, promising a future where personalized security is no longer a luxury but an accessible standard. As 3D printing technology continues to advance, its applications in creating highly secure, customized, and efficient solutions will undoubtedly expand. We invite you to share your thoughts on this transformative trend in the comments section below or engage with us on our Facebook and Twitter pages! For all the latest news, breakthroughs, and insights in the world of 3D printing, sign up for our free weekly Newsletter, delivered straight to your inbox.
