Urwahn Bikes and Schmolke Carbon Pioneer High-Performance 3D Printed Carbon Fiber Racing Bikes

In a significant stride towards the future of high-performance cycling, German bike manufacturer Urwahn Bikes has joined forces with Schmolke Carbon, a renowned specialist in lightweight carbon fiber bike components. This innovative collaboration has culminated in the development of a groundbreaking racing bike featuring a sophisticated 3D printed frame, meticulously engineered to integrate Schmolke Carbon’s ultralight carbon fiber parts. This partnership underscores a shared vision for pushing the boundaries of bike design, material science, and manufacturing technology, ultimately delivering a bicycle that promises unparalleled performance, comfort, and durability for discerning riders.

Urwahn Bikes is no stranger to leveraging cutting-edge 3D printing technologies to optimize the design and functionality of its bicycle frames. The company has consistently demonstrated a commitment to additive manufacturing, recognizing its immense potential for achieving design freedom and structural integrity previously unattainable with traditional methods. Back in 2019, Urwahn made headlines with the introduction of its “Stadfuchs” urban cycle, a model that proudly showcased a meticulously crafted 3D printed steel frame. This earlier success laid the foundation for their continued exploration into additive manufacturing, solidifying their reputation as pioneers in the industry. The latest racing bike represents a significant evolution, marrying a specially adapted 3D printed steel frame with advanced carbon fiber components, creating a unique synergy of strength, flexibility, and lightness.

The Unrivaled Advantages of Carbon Fiber in High-Performance Cycling

Carbon fiber has long been celebrated in the cycling world for its exceptional properties, particularly its outstanding strength-to-weight ratio. This characteristic makes it an ideal material for performance-oriented components, where every gram saved contributes to enhanced speed, agility, and overall rider efficiency. By significantly increasing the resistance and strength of a part while simultaneously maintaining an incredibly low weight, carbon fiber empowers cyclists to achieve new personal bests and tackle challenging terrains with greater ease. Within the broader 3D printing industry, carbon fiber composites have emerged as the most popular reinforcement material, driving innovations across various sectors. The ability to create parts that are both robust and featherlight has led to an increasing number of 3D printing applications utilizing carbon fiber composites, from aerospace components to medical devices.

While the carbon fiber bike parts developed by Schmolke Carbon for this particular racing bike were manufactured using their specialized traditional methods rather than 3D printing, their integration into the 3D printed steel frame highlights a fascinating convergence of advanced manufacturing techniques. This strategic combination allows each material to play to its strengths: the design flexibility and structural advantages of a 3D printed steel frame, complemented by the inherent lightness and stiffness of Schmolke’s expertly crafted carbon fiber components. Looking ahead, one can envision a future where Urwahn Bikes might explore 3D printing for an even wider range of its bicycle components, including carbon fiber elements, as additive manufacturing technologies continue to evolve and become more adept at handling such sophisticated materials.

Improving Performance Through Ingenious Design and Material Synergy

Upon first glance, the striking copper plating on the 3D printed steel frame of this racing bike immediately catches the eye, imparting a distinct aesthetic appeal. Beyond its captivating exterior, however, lies a meticulously engineered design that offers significant geometric advantages over conventional bicycles. Schmolke Carbon elaborates on this innovative approach, stating: “The elastic suspension of the rear wheel provides the rider with additional riding comfort without compromising bottom bracket stiffness. This critical balance ensures efficient power transfer while simultaneously mitigating road vibrations, a benefit especially noticeable during extended rides and across varied, uneven surfaces.” This ingenious rear suspension system demonstrates a deep understanding of rider needs, blending performance with ergonomic considerations.

Urwahn Bikes further emphasized the unparalleled design freedom afforded by their chosen manufacturing method, stating that they were able to “avoid any restrictions regarding part geometry.” This capability is largely attributed to the utilization of Selective Laser Melting (SLM) technology, an advanced form of additive manufacturing that allows for the creation of intricate, thin-walled parts with exceptional precision. The unparalleled design flexibility inherent in SLM enabled Urwahn to seamlessly integrate various advanced technical components directly within the steel frame. This includes discreetly incorporated LED lighting systems for enhanced safety and visibility, as well as sophisticated GPS tracking systems, offering riders both peace of mind and advanced navigation capabilities. Such integration not only streamlines the bike’s aesthetic but also protects sensitive electronics from external elements, highlighting the practical benefits of 3D printing in modern bike design.

Schmolke Carbon’s Lightweight Expertise: Enhancing Every Ride

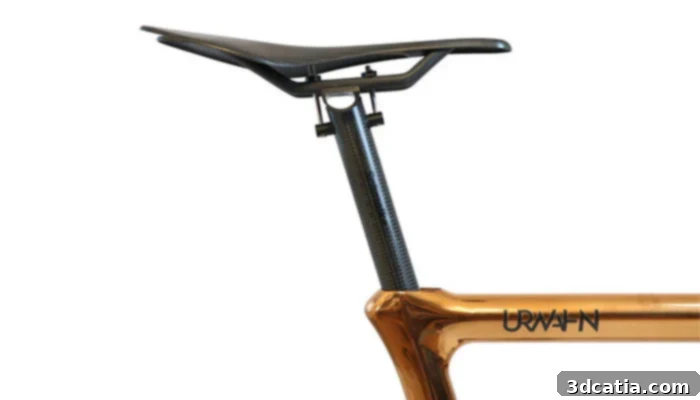

The collaboration extends to Schmolke Carbon’s provision of a range of high-performance additional parts, each meticulously crafted to complement the innovative frame design. Among these are the TLO Evo handlebar and the TLO saddle unit, both specifically designed and trimmed for ultralight construction. The “TLO” designation, meaning “The Lightest One,” underscores Schmolke’s unwavering commitment to extreme weight reduction without compromising strength or durability. These components contribute significantly to the overall weight savings of the bike, directly impacting acceleration, climbing ability, and maneuverability. A lighter bike requires less energy to propel, translating into faster speeds and reduced rider fatigue, particularly critical in competitive racing scenarios or on challenging long-distance rides.

Furthermore, Schmolke Carbon developed a specialized 45mm carbon clincher for the cycle. This wheelset is not merely about weight; its design is precisely engineered to provide optimal aerodynamic directional stability. In high-speed cycling, aerodynamics play a crucial role in reducing drag, allowing riders to maintain speed with less effort. The carefully shaped rim profile of the 45mm carbon clincher slices through the air efficiently, minimizing resistance. This aerodynamic advantage, combined with the inherent stiffness of carbon fiber, translates into a remarkably smooth cycling experience, offering precise handling and stability even in challenging conditions. The synergy between these advanced carbon fiber components and the 3D printed steel frame creates a holistic system, where every part works in harmony to elevate the rider’s performance and comfort to unprecedented levels.

Pioneering the Future of Cycling Manufacturing

Urwahn Bikes articulates its guiding philosophy on its official website, stating: “We see ourselves as technology pioneers, combining traditional manufacturing techniques with additive manufacturing to create an uncompromising product design with the highest levels of functionality and performance.” This statement perfectly encapsulates the essence of their collaboration with Schmolke Carbon. It’s not simply about adopting new technologies for their own sake, but about intelligently integrating the best of both worlds—the precision and artistry of traditional craftsmanship with the boundless potential of additive manufacturing. This approach allows them to achieve a level of product design that is truly uncompromising, pushing the boundaries of what is possible in terms of functionality, aesthetics, and ultimately, rider performance.

To rigorously validate the performance claims of this revolutionary bicycle, Urwahn Bikes and Schmolke Carbon enlisted the expertise of track bike world champion Stefan Bötticher. Bötticher, known for his exceptional skill and keen understanding of bicycle dynamics, was tasked with performing a series of demanding velodrome test runs using the newly developed racing bike. His professional feedback and insights are invaluable, providing real-world data and validation for the innovative design and material choices. Such high-level testing by an elite athlete ensures that the bike not only excels on paper but also performs flawlessly under the most competitive conditions, meeting the stringent demands of professional racing. This commitment to rigorous testing further solidifies the reliability and performance capabilities of this pioneering bicycle. For more detailed information and further insights into this groundbreaking project, interested readers can find additional resources by visiting the Urwahn Bikes website HERE.

The collaboration between Urwahn Bikes and Schmolke Carbon represents a significant milestone in the evolution of bicycle manufacturing. By strategically combining the geometric freedom and integration capabilities of 3D printed steel with the unparalleled lightness and performance of specialized carbon fiber components, they have created a racing bike that sets new benchmarks for comfort, efficiency, and cutting-edge design. This venture not only highlights the innovative spirit of both companies but also paves the way for future advancements in how bicycles are conceived, engineered, and produced, promising an exciting future for cyclists worldwide.
