MELTIO Engine: Revolutionizing Hybrid Metal 3D Printing and Large-Scale Manufacturing

MELTIO has officially unveiled the latest iteration of its groundbreaking fabrication module, the MELTIO Engine. This innovative system is engineered to enable the 3D printing of full-density metal parts when seamlessly integrated with existing CNC machines, robotic arms, and gantry systems. The result is a pioneering and remarkably affordable hybrid manufacturing solution, designed to be compatible with nearly every tooling machine currently on the market. This advancement marks a significant leap forward in making advanced metal additive manufacturing more accessible and versatile for industries worldwide.

Introducing the MELTIO Engine: A Paradigm Shift in Additive Manufacturing

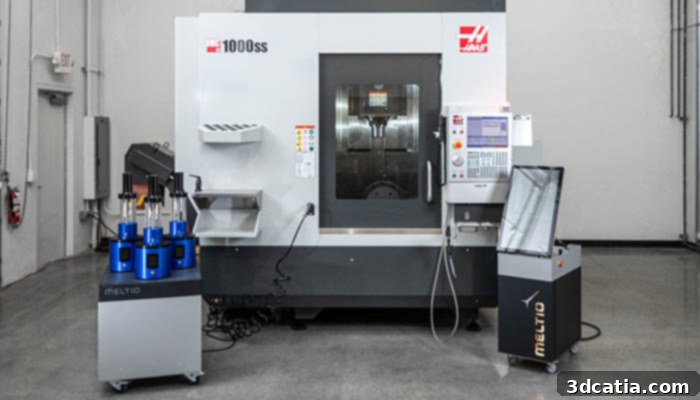

The newly revamped MELTIO Engine is the culmination of extensive research and development, building upon the initial public presentation of MELTIO’s product portfolio at Formnext 2019. Over several months, the engineering team focused on enhancing key features, with a particular emphasis on portability, compactness, and user-friendliness. Measuring a mere 94x75x45 cm, this module boasts dimensions that facilitate effortless integration with the vast majority of today’s CNC, robotic, and gantry systems, effectively transforming them into sophisticated hybrid manufacturing platforms. This ease of integration significantly lowers the barrier to entry for companies looking to adopt advanced metal additive manufacturing capabilities without investing in entirely new, standalone systems.

Unlocking Scale: Addressing Large Part Size Limitations

A historical challenge in additive manufacturing has been the inherent limitation on the size of parts that can be produced. Traditional 3D printers often have constrained build volumes, restricting their application for large-scale industrial components. The MELTIO Engine directly tackles this issue by leveraging the capabilities of existing industrial machinery. Ángel Llavero, MELTIO’s CEO, underscores this pivotal advantage: “After the launch of the M450, the MELTIO Engine moves the MELTIO LMD to a new format with which it will solve one of the great historical limitations that additive manufacturing had: the ability to manufacture large parts. Now the part size is limited only by the capacity of the robot, the gantry or the CNC in which the MELTIO Engine is integrated.” This statement highlights the transformative potential of the Engine, allowing manufacturers to produce metal parts of unprecedented scale, limited only by the reach and capacity of their existing robotic or gantry systems.

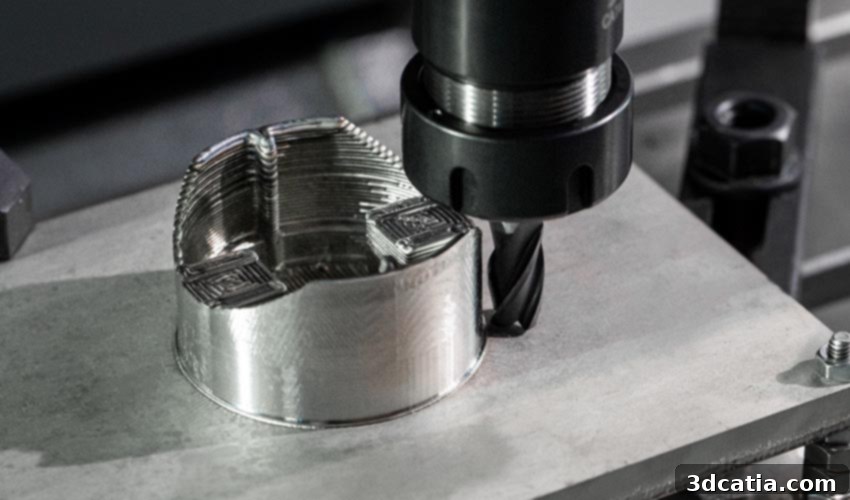

This expanded capacity opens doors for new applications in industries such as aerospace, automotive, shipbuilding, and heavy machinery, where large, high-strength metal components are critical. The ability to create these parts additively, often with optimized geometries and reduced material waste, represents a significant efficiency gain and a competitive advantage for businesses. Furthermore, the hybrid approach allows for additive manufacturing of features onto existing large components or repairs of worn parts, extending their lifespan and reducing replacement costs.

Advanced Technology: The Proprietary LMD-Wire + Powder Process

At the heart of the MELTIO Engine lies the same proprietary MELTIO LMD-Wire + Powder technology that powers their acclaimed compact metal 3D printer, the MELTIO M450. This sophisticated laser metal deposition (LMD) process uses a high-power multi-laser configuration to build parts directly by depositing layers of metallic materials. The system primarily utilizes wire feedstock, which offers several advantages, including improved safety due to minimal airborne particles, higher material utilization, and generally lower material costs compared to powder. However, the MELTIO Engine goes further by incorporating the added capability to work with powder for the creation of special alloys or when specific material characteristics are required. This dual-feed system provides unparalleled flexibility, allowing manufacturers to choose the most suitable feedstock for their application. Crucially, the system boasts an automated process that transitions between wire and powder without requiring manual head changes, maximizing uptime and operational efficiency.

The combination of wire and powder capabilities within a single print head sets the MELTIO Engine apart. Wire deposition is renowned for its high deposition rates and suitability for producing large-volume components, while powder offers greater material flexibility and the ability to finely tune alloy compositions. By integrating both, MELTIO provides a robust solution that caters to a wide spectrum of manufacturing needs, from rapid prototyping and production of robust industrial parts to the development of custom materials. The multi-laser configuration ensures uniform melting and solidification, contributing to the creation of full-density metal parts with superior mechanical properties, crucial for demanding industrial applications.

Versatility in Materials and Applications

The MELTIO Engine is proven to manufacture full-density metal parts using a range of industrially significant materials. This includes widely used Stainless Steel (all common grades), high-performance Inconel (718 and 625) known for its excellent high-temperature strength and corrosion resistance, and aerospace-grade Ti-6Al-4V (grades 5 and 23) celebrated for its exceptional strength-to-weight ratio. The material versatility does not stop there; MELTIO is vigorously pursuing the development of numerous other advanced materials at its dedicated R&D centers in the USA and Spain. These efforts are focused on expanding the material library to include Copper (for thermal and electrical applications), Aluminum (for lightweight structures), Molybdenum and Tungsten (for high-temperature and wear-resistant components), X9, Gold (for high-value or specific industrial uses), and Invar (known for its low thermal expansion). This ongoing material development ensures that the MELTIO Engine will continue to meet the evolving demands of various industries, supporting an ever-broader range of applications from tooling and spare parts to end-use components in critical sectors.

Enhanced User Experience and Economic Advantage

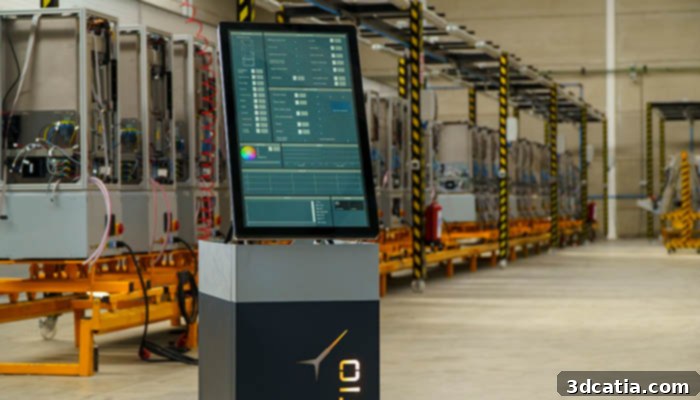

Beyond its core additive capabilities, the MELTIO Engine is designed with the user in mind. It integrates a powerful on-board computer complete with an intuitive touchscreen interface and a feature-rich graphical user interface (GUI). This sophisticated control system simplifies the operation and monitoring of manufacturing jobs, making complex processes more accessible to a broader range of technicians and engineers. The ease of use, coupled with the system’s inherent flexibility, allows companies to configure the Engine to their specific needs. From a basic setup for initial exploration and prototyping to advanced configurations for high-volume production, the MELTIO Engine adapts. Its starting price of €90,000 positions it as an exceptionally affordable entry point into high-quality metal hybrid additive manufacturing, particularly when considering the costs associated with traditional metal 3D printing systems. This price point, combined with the ability to utilize existing capital equipment (CNC machines, robots), offers a compelling return on investment for businesses seeking to innovate and optimize their manufacturing processes. More information regarding configurations and capabilities can be found directly on their website.

The Future of Metal Manufacturing is Hybrid

The MELTIO Engine represents a significant leap forward in the world of industrial manufacturing. By offering an affordable, compact, and highly versatile hybrid solution for metal 3D printing, MELTIO is empowering businesses to overcome traditional limitations related to part size, material complexity, and cost. This innovative module not only makes advanced additive manufacturing more accessible but also fosters a new era of possibilities for creating large, complex, and high-performance metal components. Its ability to seamlessly integrate with existing infrastructure makes it a strategic investment for companies looking to enhance their capabilities, optimize workflows, and maintain a competitive edge in a rapidly evolving global market. The future of manufacturing is undeniably hybrid, and the MELTIO Engine is at the forefront of this transformation.
