Titomic 3D prints the largest titanium drone

Titomic is an Australian manufacturer of 3D metal printers that recently unveiled a 3D printed titanium drone, the largest on the market according to the company. And for good reason, this one is 1.8 metres in diameter! It was designed on Titomic’s XXL machine, capable of creating parts 9 metres long by 3 metres wide and 1.5 metres high, with a throughput of 29 kg of material per hour. This first prototype of a giant UAV demonstrates the potential of the manufacturer’s additive manufacturing solutions, particularly for applications in the military and aerospace sectors.

Combining 3D printing and drones is not an innovation in itself; the manufacturing method has long been used in the development of pilot-free aircraft, whether in the military or the sports industry. In these cases, 3D printing makes it possible to rethink the design of the drone, to add complexity while reducing its final weight and increasing its performance. However, no one had ever imagined such a large device, or at least not in titanium; that is why Titomic’s initiative is interesting.

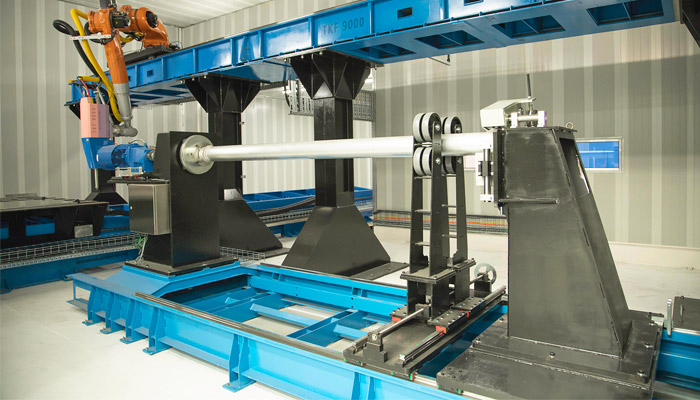

The machine based on the TKF process | Photo Credits: Titomic

A 3D printed drone in titanium from Titomic

The manufacturer relied on its patented Titomic Kinetic Fusion (TKF) technology, which is based on a cold spraying method – apparently, it sprays titanium particles onto the printing medium at very high speed to fuse them together to form the desired part. Titomic explains that they opted for titanium because it is a metal that offers a very good strength-to-weight ratio, particularly interesting for security and military applications. In the case of the drone, the team says that the additive metal construction allows them to design a more robust and lightweight ballistic protection. Titomic should now be able to work with different metal alloys such as stainless steel, inconel and tungsten carbide.
