Creating an anatomical baby bottle using a 3D scanner

The accessory industry for newborns and infants is yet another industry that is dynamically changing thanks to 3D printing technologies such as scanners. Just recently, designer Beata Nikolajczyk, designed the unique personalised ‘New Eve’ milk dispenser, shaped like a female breast. This product is innovative and has earned many awards in various competitions. It has been designed in a way to reproduce the experience of natural feeding in situations where it is not always possible. It was created on the basis of research supported by the financial resources of the Ministry of Science and Higher Education in Poland.

Using the most modern 3D scanning technology, the irregularity of the female breast was able to be perfectly reproduced. The SMARTTECH scanner used operates with structured light technology, well-known for its high accuracy and precision. Apparently, it was able to scan a surface of 300×200 mm in 0.2 seconds.

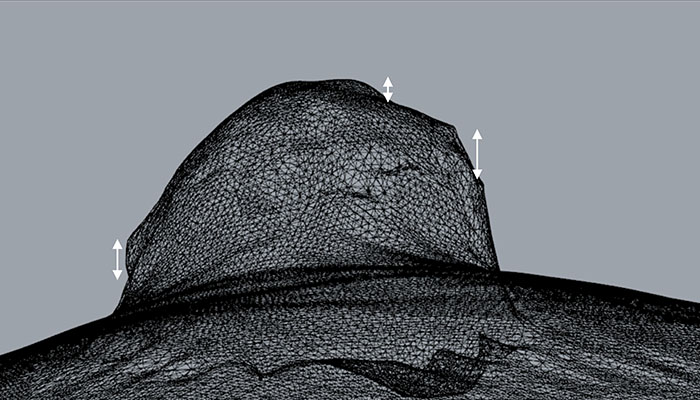

The nipple surface | Credits: SMARTTECH

An anatomical bottle: the future of baby bottles?

In general, a 3D scan allows a cloud of points to be obtained that reflect the surface of the scanned object. Then a triangle mesh is created from all these points – the shape of the object is reflected in detail using a set of several million small triangles. In this case, a detailed analysis was able to generate precise calculations of the examined breast surface including indentations, inequalities occurring on the nipple surface and it was also possible to see an enlarged view of the nipple-areola surface.
