Houdini for 3D Printing: The Best Techniques for Modeling and Error Prevention

Developed by SideFX, a Toronto-based software company, Houdini is a powerful solution for 3D modeling, animation and special effects. The software is particularly well known for its procedural approach and is mainly used in the film and gaming industry, especially for creating complex simulations and visual effects. In the film industry, graphics software is used for special effects in large studios such as Walt Disney Animation Studios, Pixar or DreamWorks Animation for films such as Frozen, Fantasia 2000 or Zootopia. But in addition to animations and special effects, Houdini is also excellent for modeling objects for 3D printing. In this guide, we will explain how to leverage the platform for 3D printing,

Houdini was developed as a procedural system to offer artists maximum creative freedom. With a node-based workflow, the software enables the creation of repeatable and modifiable processes. This means that every action in Houdini is stored in a node, which can then be connected to form networks that serve as a basis for optimizing designs, creating variants or testing alternative approaches. Above all, this facilitates collaboration and experimentation. In addition, Houdini offers extensive tools for polygon, NURBS and subdivision surface modeling that can be used on the right side of the viewport, making it easier to create detailed surface topologies. Houdini also has an integrated mantra renderer that supports scanline, ray tracing and physically based rendering, which is particularly useful for efficient visualization of geometries or volumes. The software is also characterized by tools that can be used to create assets and adapt them to different projects.

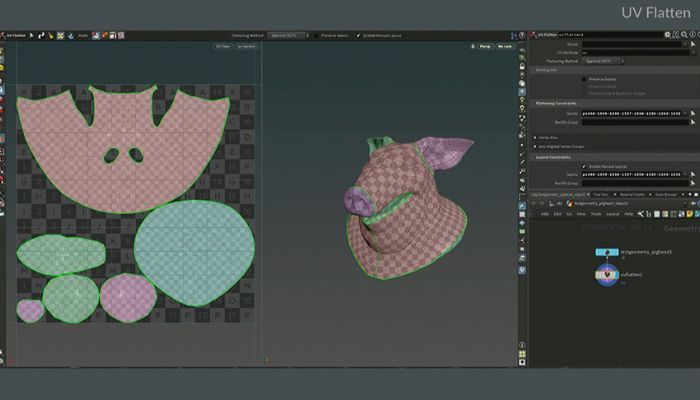

The software is suitable for Windows NT, Linux, MacOS. (Credit: SideFX)

Houdini and 3D Printing: What to Look out For

As Houdini is primarily a 3D animation and simulation software, certain points must be taken into account when developing 3D printing projects. First, you should ensure that the models have a closed volume and are therefore suitable for additive manufacturing, as overlapping geometries could lead to significant errors. It is also important to adapt the wall thickness to the printing material and printer requirements to ensure stability.
