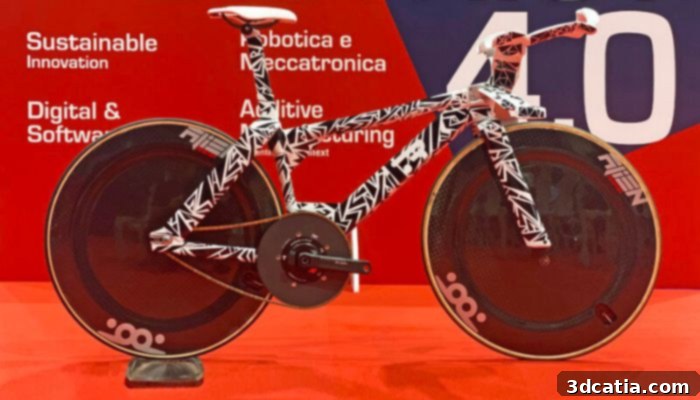

X23 Swanigami: Revolutionizing Track Cycling with Advanced 3D Printing and Personalized Aerodynamics

The world of professional cycling is constantly pushing the boundaries of technology and performance. In recent years, 3D-printed bicycles have emerged as a significant game-changer, appearing not only in cutting-edge prototypes but also on the grandest stages, including the highly anticipated 2024 Olympic Games. This innovative approach to bike manufacturing allows for unprecedented levels of customization, aerodynamic optimization, and material efficiency, offering athletes a competitive edge like never before. Among the latest and most exciting examples of this revolution is the X23 Swanigami, a state-of-the-art track bike that embodies the pinnacle of collaborative engineering and additive manufacturing.

The X23 Swanigami is not merely a bicycle; it’s a testament to interdisciplinary innovation, developed through a powerful collaboration between T°Red Bikes, Toot Racing, Bianca Advanced Innovations, Compmech, and the 3DProtoLab laboratories at the University of Pavia in Italy. This powerhouse team has engineered a track bike meticulously optimized for one singular purpose: unparalleled speed. A key element of its design philosophy revolves around its unique front triangle, which has been ingeniously shaped to achieve an aerodynamic effect known as “washout.” This concept, traditionally employed in aircraft wing design to enhance stability and control, has been adapted to the bike to minimize drag and improve handling at high speeds, providing a tangible advantage on the velodrome.

Beyond advanced aerodynamics, additive manufacturing played a crucial role in creating an exceptionally ergonomic and aerodynamic vehicle that seamlessly integrates with the rider. The development process involved creating “digital twins” of both the cyclist’s body and the bike itself. This cutting-edge approach allowed engineers to meticulously analyze and refine the interaction between rider and machine in a virtual environment, ensuring the best possible fit and aerodynamic harmony. This level of personalization is a direct outcome of 3D printing’s capabilities, enabling the creation of complex, organic geometries that perfectly match the athlete’s unique physique and riding style, optimizing every watt of power transferred to the pedals.

The Cyclist as a Wing: A Paradigm Shift in Bike Design

Perhaps the most groundbreaking aspect of the X23 Swanigami lies in its revolutionary design philosophy, which reimagines the relationship between the rider and the bike. Central to this approach are sophisticated 3D scanning technologies. By capturing precise three-dimensional data of the cyclist’s body, the design team was able to treat the athlete not just as a power source, but as an integral aerodynamic component—effectively, a “wing” designed to propel the vehicle forward and significantly reduce atmospheric pressure and drag. This holistic integration ensures that the rider’s body becomes an extension of the bike’s aerodynamic profile, working in concert to slice through the air with minimal resistance.

This highly individualized approach means that each X23 Swanigami is custom-printed specifically for its rider. The goal is to achieve the absolute zenith of performance by meticulously balancing three critical factors: the athlete’s raw strength, the bike and rider’s air penetration coefficient (aerodynamics), and the rider’s comfort. A detailed 3D scan of the athlete’s body serves as the foundation for an algorithm that generates a bike shape perfectly tailored to optimize this delicate equilibrium. This process moves far beyond traditional off-the-rack sizing, offering a truly bespoke solution that maximizes efficiency and minimizes drag for that specific individual.

Romolo Stanco, co-founder of T°Red Bikes and director of Bianca Advanced Innovations, eloquently summarized this groundbreaking philosophy, stating, “We didn’t design a new bike, we designed the cyclist.” This statement encapsulates the core belief that the cyclist is, technically and functionally, an inseparable part of the bike. This human-machine symbiosis allows for an unprecedented level of integration, where every curve and dimension of the bike is optimized around the rider’s unique morphology. The result is a bike that feels like a natural extension of the athlete, enhancing both comfort and aerodynamic efficiency, and ultimately, speed.

Advanced Materials and Rapid Prototyping Through Additive Manufacturing

The choice of materials for the X23 Swanigami is as advanced as its design. The main frame components are fabricated from 3D-printed Scalmalloy, an aerospace-grade aluminum alloy known for its exceptional properties. According to Toot Racing, Scalmalloy offers an outstanding power-to-weight ratio, which is absolutely critical for track cycling where every gram and every watt counts. This material combines high strength, excellent ductility, and corrosion resistance, making it ideal for the demanding environment of competitive cycling. Its additive manufacturing compatibility allows for the creation of complex lattice structures within the frame, further reducing weight without compromising structural integrity, a feat impossible with traditional manufacturing methods.

Complementing the innovative frame, the vehicle’s handlebars are also produced using 3D printing, specifically from titanium or high-strength steel. This selection provides further opportunities for customization and optimization. Titanium, known for its superior strength-to-weight ratio and fatigue resistance, allows for extremely light yet robust handlebars. Steel, on the other hand, offers different characteristics such as specific flex properties that can be tuned to rider preference, while still benefiting from the design freedom of additive manufacturing. Toot Racing specifically chose additive manufacturing for these components because it grants them “precise control over the final geometry and material properties of the bike.” This precision is vital for crafting handlebars that offer optimal grip, ergonomic positioning, and aerodynamic profiling tailored to each cyclist.

Beyond material and geometric control, 3D printing delivers another significant advantage to the development process: speed. The ability to rapidly iterate designs and produce prototypes is invaluable in a fast-paced sport like cycling. Toot Racing reported a remarkable achievement in this regard, utilizing HP’s Multi Jet Fusion (MJF) solution. With this advanced 3D printing technology, the team was able to supply a full-scale prototype of the X23 Swanigami in less than 24 hours. HP’s MJF technology is renowned for its speed, scalability, and ability to produce functional parts with excellent mechanical properties, making it an ideal choice for quick development cycles and robust prototyping. This rapid prototyping capability significantly accelerates the design-test-refine loop, allowing engineers to quickly validate aerodynamic improvements and ergonomic adjustments, leading to a much faster route to the final, optimized product.

UCI Compliance, Olympic Ambitions, and Future Innovations

For any high-performance bicycle to compete at an international level, it must adhere strictly to the regulations set forth by the Union Cycliste Internationale (UCI). The manufacturers of the X23 Swanigami have assured that their groundbreaking creation fully complies with these stringent rules, which govern everything from frame dimensions and weight to safety standards. Without this essential compliance, the bike would be ineligible for professional international competitions, rendering its technological advantages moot. This commitment to regulatory adherence underscores the professionalism and foresight of the development team, ensuring the bike’s eligibility for top-tier events.

With UCI approval secured, the X23 Swanigami is poised for a grand entrance onto the global stage. It is slated for registration with the UCI with the clear intention of being utilized by the Argentinean team at the prestigious Track Cycling World Championships in Glasgow. Furthermore, there is strong anticipation that this revolutionary 3D-printed bike may also grace the velodrome at the 2024 Olympic Games, set to be held in Paris. Its potential appearance at the Olympics would not only be a testament to its advanced engineering but also a powerful showcase for the capabilities of additive manufacturing in elite sports.

The vision for the X23 Swanigami extends beyond the confines of professional track racing. Toot Racing has indicated its ambition to offer not only these hyper-optimized competition bikes but also to leverage the same advanced design and manufacturing principles for road and gravel bikes. This expansion would democratize access to personalized, high-performance cycling technology, allowing a broader range of cyclists to benefit from bespoke ergonomics and aerodynamic efficiency. This forward-thinking approach suggests a future where custom-fit, 3D-printed bikes become a more common sight across various cycling disciplines, enhancing performance and comfort for enthusiasts and serious riders alike. To explore more about these innovations and Toot Racing’s broader product range, visitors are encouraged to visit the Toot Racing website HERE.
